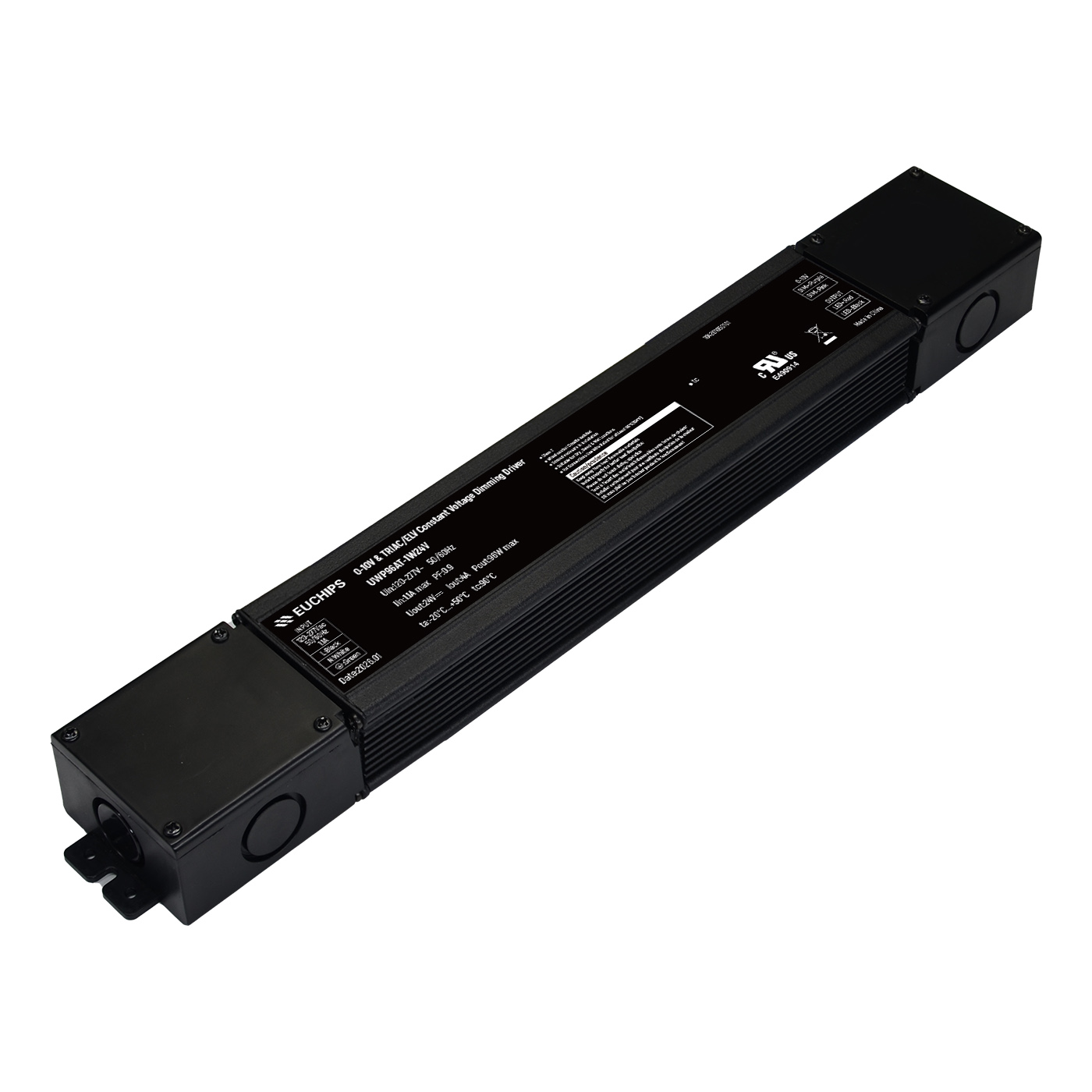

96W 24V 0/1-10V Triac CV Driver UWP96AT-1W24V
Product Features
· Single channel constant voltage output, Output Current 4A Max
· Input Voltage Range 108-305Vac
· Support 0-10V ,Potentiometer,PWM,Triac/ELV Dimming
· TRIAC and ELV dimming at 120 Vac only
· 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: Overload; short circuit; Overcurrent
· Safety according to UL8750 &UL 1310
· Suitable for Dry , Damp & Wet Locations
| Model | UWP96AT-1W24V | |
|
Input |
Efficiency | ≥86%@120VAC, ≥87%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.1Amax @120VAC, 0.6Amax@230VAC, 0.5Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.9@277VAC, full load | |
| THD | <10%@230VAC, <20%@277VAC, full load | |
| Inrush Current(max) | Cold start,16A@120VAC 590us, 41A@277VAC 5560us | |
| Standby power | <2.5W@120VAC | |
| No load power | <2.5W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 4A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
|
Function |
Dimming Type | 0-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
|
Protection |
Short Circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Load | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over Current | Hiccup Protection, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N: 2.5kV L-N-PG: 2.5kV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 | |
| EMC Emission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+50℃ [-4°F~122°F] |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH (-40°F-185°F) | |
| tc | 90℃ (194°F) for safety & 80℃(176°F) for life | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000小时@tc:80℃ (176°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 910g (2.0 lb)±5%/PCS; 16PCS/Carton;15.06kg(33.20 lb)±5%/Carton; Carton Size: 393*272*190mm(15.5*10.7*7.4 Inch)(L*W*H) | |
| Dimension | 377*55*35mm (14.85*2.16*1.37 Inch)(L*W*H) | |
