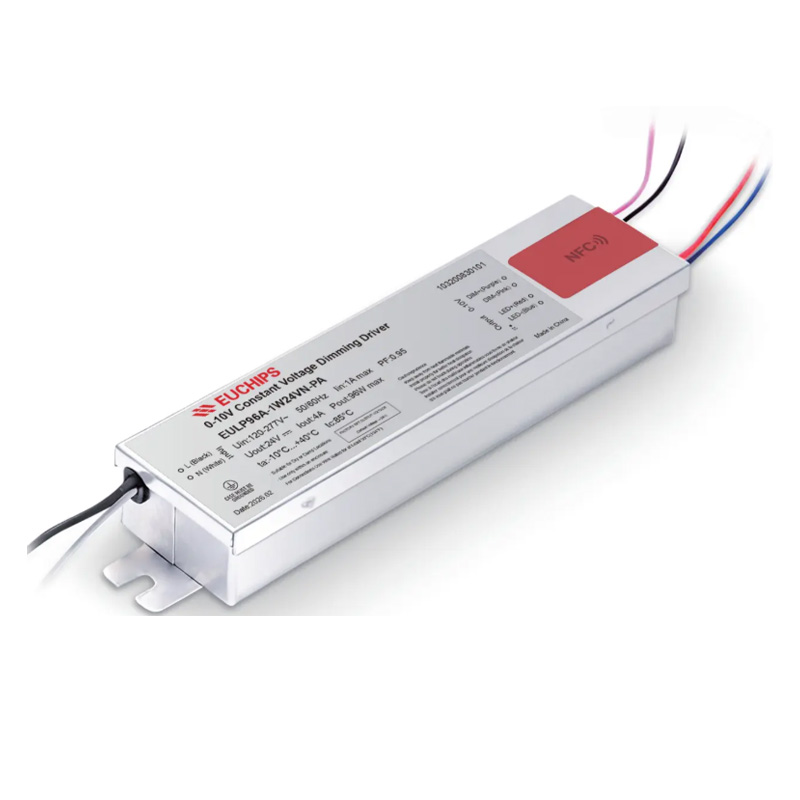

96W 24V 0-10V dimming CV driver EULP96A-1W24VN-PA
Product Features
·Single-channel constant voltage output
·Supports switching between PwM and AM dimming(VR)
·Protection: Overload, overcurrent, short circuit protection
·UL Class P, Class 2 output
·Complies with UL 8750 & UL 1310 safety standards
·NFC programmability: Enables configuration of output Voltage for an optimized dimming range, 0-10V dimming curve, dimming mode, dimming depth,
and dim-to-off function.
Technical Parameters
| Model | EULP96A-1W24VN-PA | |
|
Input |
Rated Voltage | 120-277VAC |
| voltage range | 108-305VAC | |
| voltage range (DC) | 108-280VDC | |
| Current | 1Amax @ 120VAC, 0.52Amax @ 230VAC, 0.43max @ 277VAC | |
| Frequency range | 50/60Hz | |
| Inrush Current | Cold start,20A@120VAC 200us, 42A@230VAC 200us, 52A@277VAC 200us | |
| Effciency | >90%@120VAC, >92%@230VAC, >93%@277VAC, Full load | |
| THD | <10%@120VAC, <10%@230VAC, <10%@277VAC, Full load | |
| Power factor | >0.95@120VAC, >0.95@230VAC, >0.95@277VAC, Full load | |
| Standby power | <1.5W@120VAC | |
| No load power | <1.5W@120VAC | |
| Turn on time | <0.5s, @120Vac (time-to-first-light) | |
|
Output |
Current | 0-4A |
| Voltage | 24V ( NFC programming Range: 23-26VDC) | |
| Voltage Accuracy | ±3% | |
| Power | 96W | |
| Output Channel | 1 | |
| Load Regulation | ±2% | |
| Line Regulation | ±1% | |
| Current Overshoot | 5% | |
| No load output voltage | 25.2VDCmax@24VDC (105% of NFC programming output voltage) | |
| Protection | Short-circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Current | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overload | Triggers when load power ≥100W, output current reduces, auto-recovery after fault cleared | |
|
Function |
Dimming Type | 0/1-10V |
| Dimming Range | 0.1%-100% (NFC programmable) | |
| Dimming Curve | Linear/Logarithmic (NFC programmable) | |
| Flicker | Flicker free | |
| Dimming Type | PWM/AM(VR) (NF programming) | |
| Safety& EMC | Surge | L-N: 2.5KV , L-N-PE: 2.5KV , (Ring wave & Combination Wave) |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA , I/P-PG:1500Vac/1min/<5mA , O/P-PG:500Vac/1min/<5mA , O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | UL8750:2015 Ed.2+R:07Dec2022, UL1310, CSA-C22.2 No. 250.13:2022 Ed.5 | |
| EMC | FCC 47 Part 15 ClassB | |
