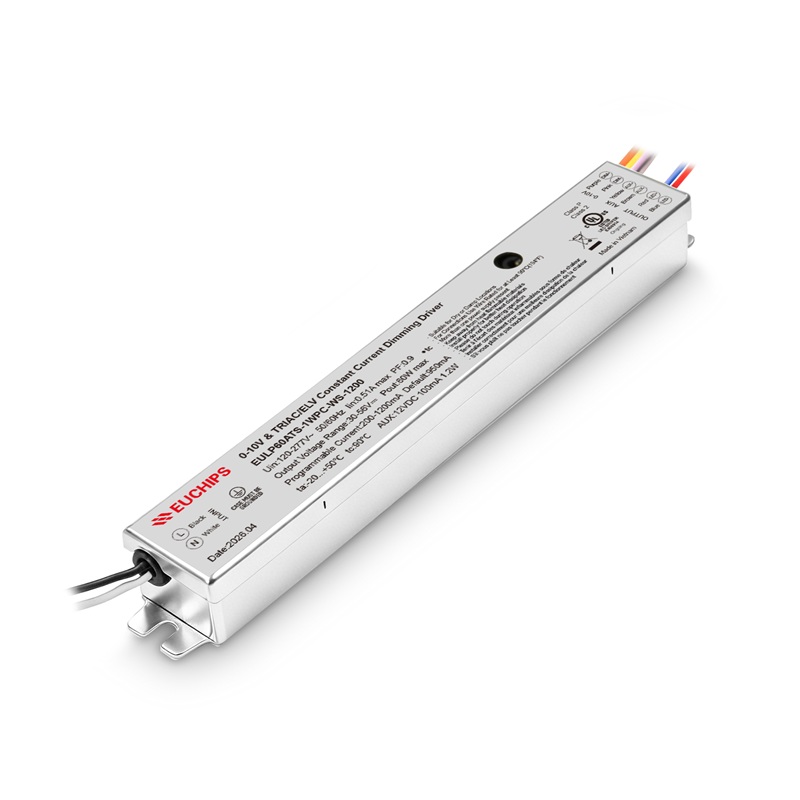

60W 200-1200mA 0/1-10V CC Driver EULP60ATS-1WPC-WS-1200
Product Features
•Single channel output, output current can be Programmable by software
•Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
•TRIAC and ELV dimming at 120 Vac only
•Protections: Overload, Overvoltage and short-circuit
•UL Class P, Class 2 Output
•Safety according to UL8750 & UL 1310
•Suitable for Dry , Damp Locations
•Suitable for indoor LED lighting application
Technical Parameters
| Model | EULP60ATS-1WPC-WS-1200 | |
|
Input |
Efficiency | >84%@120VAC, >86%@277VAC Full load |
| Frequency | 50-60Hz | |
| Voltage | 120VAC-277VAC | |
| PF | 0.95@120VAC, 0.9@277VAC, Full load | |
| THD(full load) | 10%@120VAC, 15%@277VAC, Full load | |
| Current | 0.65Amax@120VAC, 0.28A@277VAC | |
| Inrush Current | 22A@120VAC 244us 51A@277VAC240us | |
| No load power | <1W@120VAC | |
| Standby Power | <2W@120VAC | |
|
Output |
Current | 200-1200mA (Default current: 950mA) |
| Voltage | 30-56V *(Triac dimming above 20V has better dimming effect) | |
| Power | 60W max *(Triac dimming with a load of 20W or more has better dimming effect) | |
| Channel | 1 | |
| No load output voltage | 59V Max | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | 5%@30-56V, 1200mA | |
| Auxiliary Power (Vaux) | CV:12V(0-100mA) In Triac dimming mode, no load is required. | |
| Protection | Overvoltage | Yes, Current drops, Auto-recovery after Fault Clearance |
| Short circuit | Shut down output, Auto-recovery after Fault Clearance | |
|
Safety & EMC |
Surge | L-N:2.5KV (ANSI/IEEE C62.41.1-2002 & c62.41.2-2002 category A, 2.5 kV ringwave) |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG: 500Vac/1min/<5mA, O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | 0/1-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming range | 3%-100% | |
| Dimming curve | 0-10V: linear/Logarithmic curve programmable, Triac/ELV: Logarithmic | |
| Flicker | Flicker free | |
|
Others |
Working temp. | (-20~+50) ℃ [-4°F~122°F] |
| Relative humidity | 20~90% RH | |
| tc | 90℃ [ 194°F ] | |
| Lifetime | 50,000h@tc:85℃[ 185°F ] | |
| Warranty Condition | 5 years | |
| Switch cycle | >25,000 times | |
| IP rating | IP20 | |
| Material | Metal | |
| Dimension | 182*27.4*20.6mm (7.17*1.08*0.811 Inch) (L*W*H) | |
| Pack Information | Net weight: TBDg±5%/PCS; TBDPCS/Carton; TBDkg±5%/Carton; Carton Size: TBD*TBD*TBDmm(L*W*H) | |
