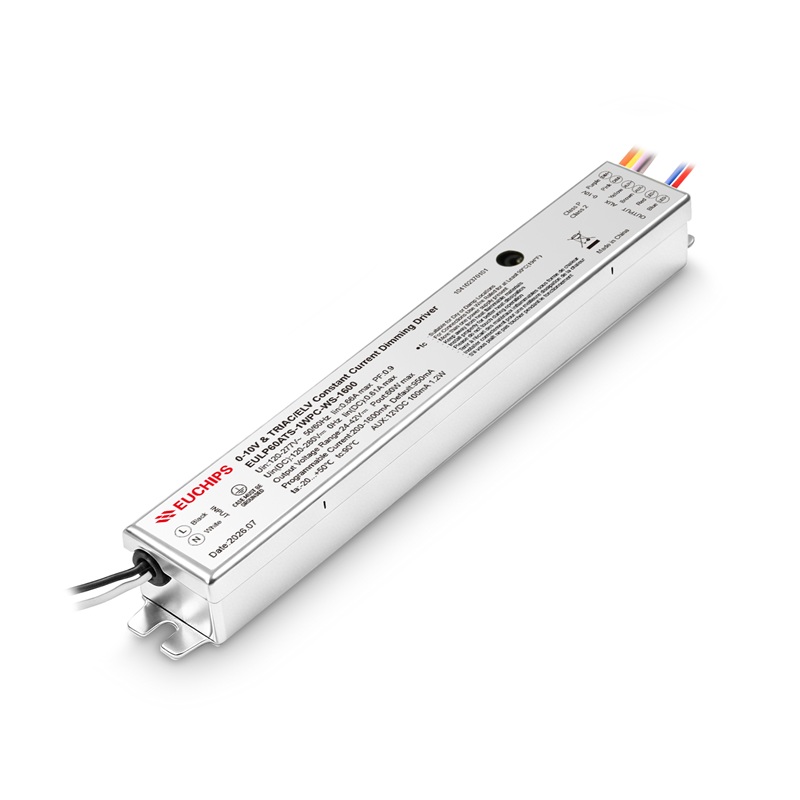

96W 200-1600mA 0-10V/Traic CC Driver EULP60ATS-1WPC-WS-1600
Product Features
•Single channel output, output current can be Programmable by software
•Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
•TRIAC and ELV dimming at 120 Vac only
•Protections: Overload and short-circuit
•UL Class P, Class 2 Output
•Safety according to UL8750 & UL 1310
•Suitable for Dry , Damp Locations
•Suitable for indoor LED lighting application
| Model | EULP60ATS-1WPC-WS-1600 | |
|
Input |
Efficiency | >84%@120VAC, >86%@277VAC Full load |
| Frequency | 0/50/60Hz | |
| Voltage | 120VAC-277VAC | |
| Voltage(DC) | 120VDC-280VDC | |
| PF | 0.95@120VAC, 0.9@277VAC, Full load | |
| THD(full load) | 10%@120VAC, 15%@277VAC, Full load | |
| Current | 0.66Amax@120VAC, 0.28A@277VAC | |
| Current(DC) | 0.61Amax@120VDC, 0.32A@277VDC | |
| Inrush Current | 18.5A@120VAC 288us 43.8A@277VAC 300us | |
| Standby Power | <1W@120VAC | |
| No load power | <2W@120VAC | |
|
Output |
Current | 200-1600mA (Default current: 950mA) |
| Voltage | 24-42V *(Triac dimming above 20V has better dimming effect) | |
| Power | 60W max *(Triac dimming with a load of 20W or more has better dimming effect) | |
| Channel | 1 | |
| No load output voltage | 59V Max | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | 5%@24-42V, 1600mA | |
| Auxiliary Power (Vaux) | CV:12V(0-100mA) In Triac dimming mode, no load is required. | |
| Turn on time | ≤ 0.75s, at 230Vac (when the light is on) | |
| Protection | Overload | Current reduction protection, returns to normal after fault cleared. |
| Short circuit | Turn off the output, and it will recover automatically after the fault is removed | |
| Function | Dimming type | 0-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming range | 3%-100% | |
| Dimming curve | 0-10V: linear/Logarithmic curve programmable, Triac/ELV: Logarithmic | |
| Flicker | Flicker free | |
|
Safety & EMC |
Surge | L-N:2.5KV (ANSI/IEEE C62.41.1-2002 & c62.41.2-2002 category A, 2.5 kV ringwave) |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG: 500Vac/1min/<5mA, O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
