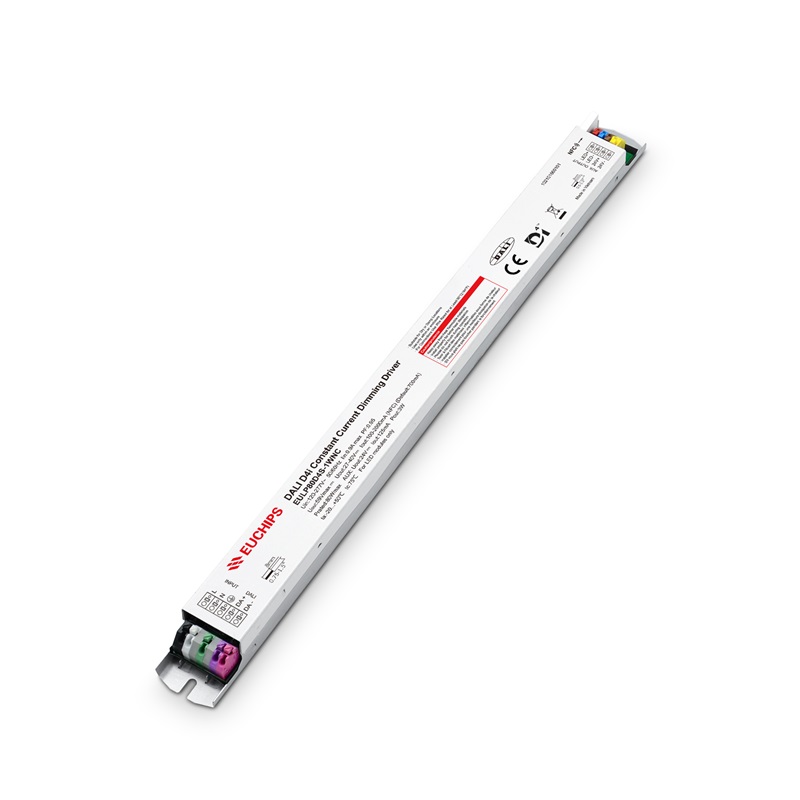

80W 100-200mA DALI CC Driver EULP80D4S-1WNC
Advantages
•Enable interoperability with diverse wireless sensors/network systems
•Reduce complexity and cost of fixture by eliminating auxiliary components
ordinarily re quired for powering sensors, switching fixture off and monitoring energy use
•interface to any suitable sensor and ease of adjustable drive current
Product Feature
•Standard-compliant (DiiA) digital interface including:
-Integrated DALI bus power supply (Part 250)
-Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
•Energy metering and advanced diagnostics
•Continuous dimming down to 1%
•Drive current setting via NFC wireless programming
•5-year limited warranty
Programming
Adjustable Light Output (ALO) Adjustable Output Current (AOC) Luminaire Maintenance Luminaire Information
Technical Parameters
| Model | EULP80D4S-1WNC | |
|
Input |
Efficiency | ≥85%@120VAC, full load，≥87%@277VAC, full load |
| Rated Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.9Amax@120VAC, 0.4Amax@277VAC | |
| Power Factor | ≥0.95@120VAC, full load，≥0.9@277VAC, full load | |
| THD(full load) | <10%@120VAC-277VAC, full load | |
| Inrush Current(max) | Cold start, 6.29A@120VAC 39us, 17.7A@277VAC 38us | |
|
Output |
Current Range | 100-200mA(NFC), (Default Current: 700mA) |
| Voltage Range | 27-40VDC | |
| Output Power | 80W Max | |
| Current | 1 | |
| Current Accuracy | ±5% (±7% below 400mA) | |
| Ripple current | ±5% | |
| No load output voltage | 60VDC max | |
| Standby power | ≤1W | |
| No load power | ≤1W | |
| Start-up Time | ≤0.75s, @120Vac (When the light begins to shine) | |
|
Aux Output |
Output Voltage | 24V±10% |
| Output Power | 3W | |
| Output Current | 125mA | |
| No load output voltage | 30V MAX | |
| Ripple Voltage | ≤1V | |
|
Function |
Dimming Type | DALI 2.0 D4i (EN62386-250, 251, 252, 253, 150) |
| Dimming Range | 1-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short-circuit protection | Short circuit without output, Auto-recovery after Fault Clearance |
| Overload protection | Reduce current hiccup protection, Auto-recovery after Fault Clearance | |
| Over Voltage | Reduce current hiccup protection, Auto-recovery after Fault Clearance | |
|
Safety& EMC |
Surge | L-N 2500VAC L&N-PE 2500VAC |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | UL8750/CSA C22.2 N0250.13/UL1310/Class 2/Class P | |
| EMC Eission | FCC Part 15 Class A [120VAC, 277VAC] | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ (-4℉~122℉) |
| Storage Temp., Humidity | -40℃~80℃, 5%-90%RH (-40°F-185°F) | |
| tc | 75℃ (167℉) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ (167℉) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 360*30*21mm (14.17*1.18*0.827 Inch) (L*W*H) | |
| Packing(weight) | Net weight: 330g(0.728 Ib)±5%/PCS; 50PCS/Carton; 16.5kg(36.38Ib)±5%/Carton; Carton Size:377*333*134mm(14.84*13.11*5.28 Inch)(L*W*H) |
