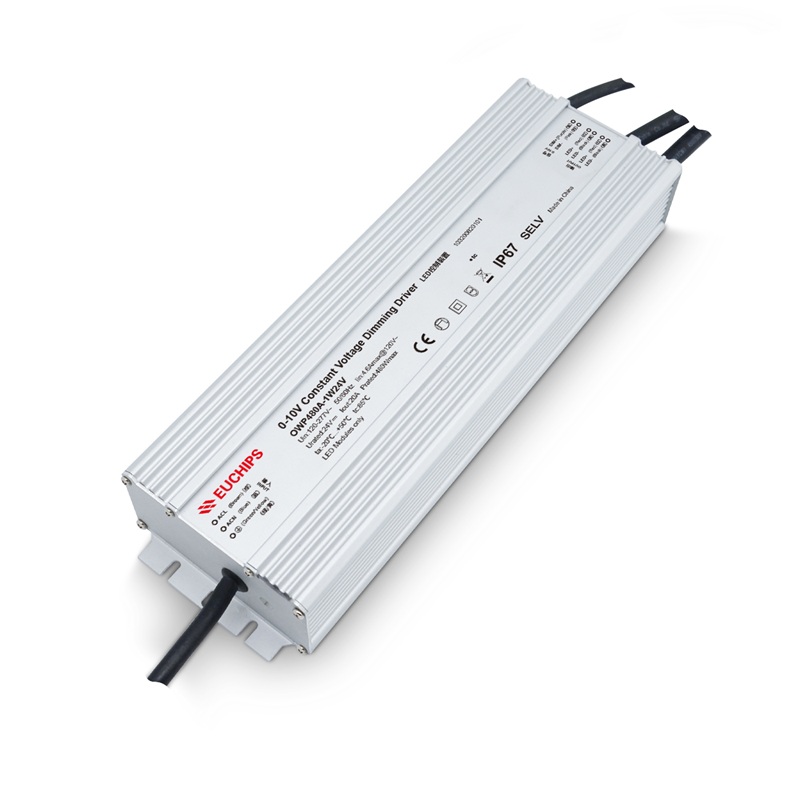

480W 24V 0/1-10V CV Driver OWP480A-1W24V
Summary
OWP480A-1W24V is a waterproof constant voltage output LED dimming driver. Supports 0/1-10V active signals, achieving smooth dimming effect.
Product Features
· Single channel constant voltage output, output current is 20A max
· Dimming range 1% -100% dimming, smooth dimming without any step or flicker
· Built in PFC chip to improve energy efficiency and reduce pollution to the power grid
· Waterproof rating IP67, suitable for outdoor lighting
· Protection: Overload, overcurrent, short circuit protection
· Lifespan of 50000 hours, 5-year warranty
| Model | OWP480A-1W24V | |
|
Input |
Efficiency | ≥91%@120VAC, ≥94%@230&277VAC, full load |
| Frequency | 50/60Hz | |
| Voltage | 120VAC-277VAC | |
| Power Factor | ≥0.95@120VAC, ≥0.90@277VAC, full load | |
| THD(full load) | <10%@120VAC, <15%@277VAC, full load | |
| Current | 4.6A@120VAC, 2.4A@230VAC, 2.0A@277VAC | |
| Inrush Current | Cold start, 27.1A@120VAC 850us, 60.3A@277VAC 152us | |
| Standby Power | <2.0W@120VAC | |
| No load power | <2.0W@120VAC | |
| Turn on delay Time | <0.75s (@120VAC, When the light begins to shine) | |
|
Output |
Current | 20.0A |
| Voltage | 24VDC | |
| Voltage Accuracy | ±5% | |
| Power | 480W | |
| Channel | 1 | |
| Over power limit | ≥125% | |
| Ripple | ≤720mV | |
| Frequency | 3.3KHz PWM | |
|
Protection |
Short Circuit | No output. It will recover automatically after troubleshooting |
| Over Current | No output. It will recover automatically after troubleshooting | |
| Over Load | No output. It will recover automatically after troubleshooting | |
|
Safety & EMC |
Surge | L-N: 6KV L-N-PG: 10KV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA Signal-O/P: 1500VAC/1min/5mA | |
| Safety standards | EN61347-1, EN61347-2-13, UL8750, UL1310 | |
| EMI Emission | EN55015, FCC Part 15 Class B | |
| Insulation Resisance | 5MΩ | |
|
Function |
Dimming Type | 0-10V |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
|
其它 |
IP Rating | IP67 |
| Working Temp. | -20~+50°C [-4°F~122°F] | |
| Storage Temp., Humidity | -40~+85°C [-40°F~185°F], 20~90% RH | |
| tc | 85℃ | |
| Lifetime | 50,000h@tc:85℃[185°F] 90%Load @120VAC | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Material | Metal | |
| Dimension | 289*89.5*46.5mm(11.37*3.52*1.831) (L*W*H) | |
| Packing(weight) | Net weight: 1800g(3.97lb)±5%/PCS; 5 PCS/Carton; 9.5kg(20.9lb)±5%/Carton; Carton Size:332*284*134mm(13.1*11.2*5.3) (L*W*H) | |
