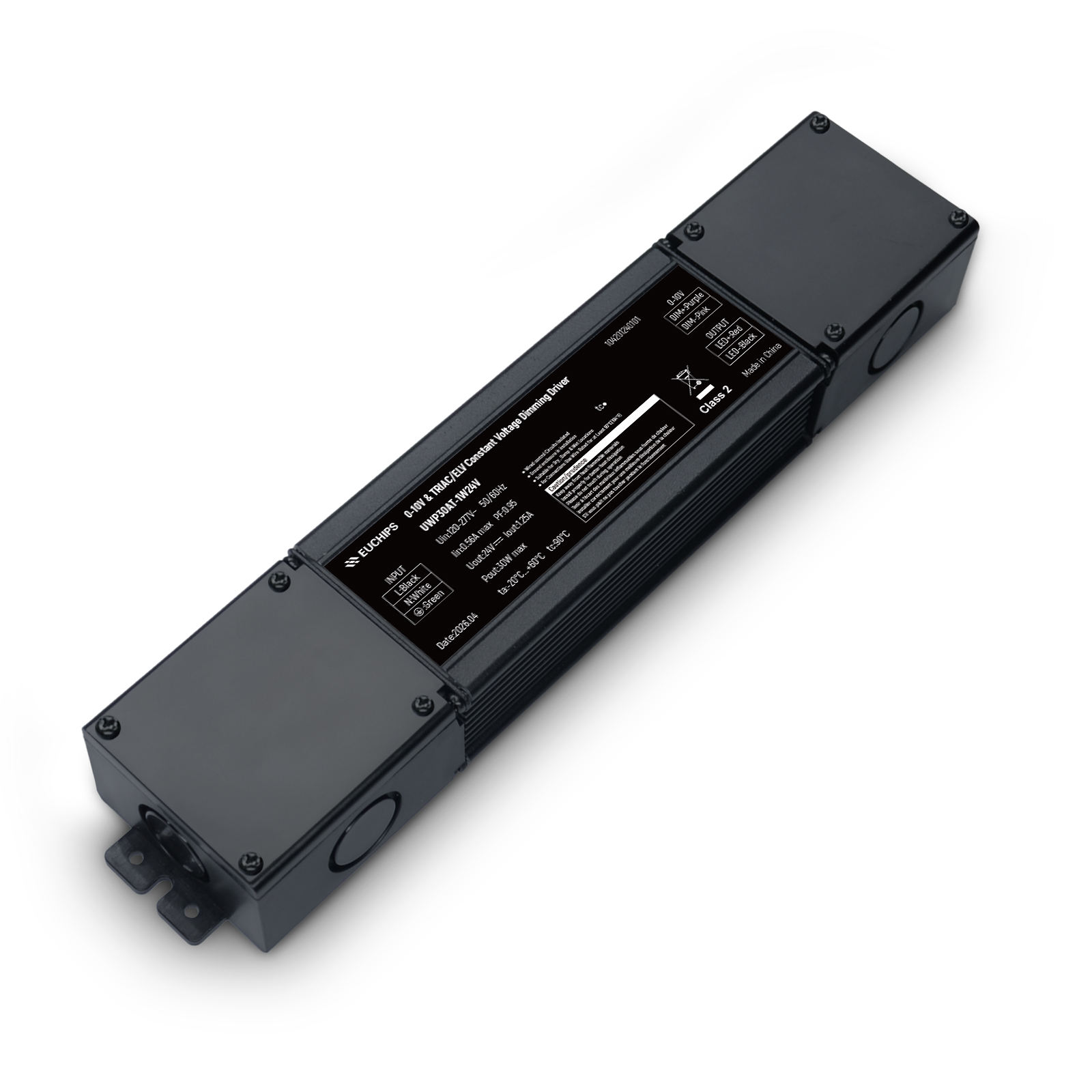

30W 24V 1.25A 0/1-10V CV Driver UWP30AT-1W24V
Product Features
·Single channel constant voltage output, Output Current 1.25A Max
·Input Voltage Range 108-305Vac
·Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
·Dimming effect smooth, flicker free
·TRIAC and ELV dimming at 120 Vac only
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Overload; short circuit; Overcurrent
·Class 2 Output
·Safety according to UL8750 &UL 1310
·Suitable for Dry , Damp & Wet Locations
Technical Parameters
|
Model |
UWP30AT-1W24V-BW | |
|
Input |
Efficiency | ≥76%@120VAC, ≥81%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.56Amax @120VAC, 0.25Amax@230VAC, 0.2Amax@277VAC | |
| PF | ≥0.95@120VAC, ≥0.9@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start,5A@120VAC 590us 12A@277VAC 600us | |
| Standby power | <2.5W@120VAC | |
| No load power | <2.5W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 1.25A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 30W | |
| Channel | 1 | |
| PWM Frequency | 20K Hz | |
|
Function |
Dimming Type | 0-10V, Potentiometer, PWM, Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over Load | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over Current | Current drops, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N: 2.5kV L-N-PE: 2.5kV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F-185°F), 20-90%RH | |
| tc | 90℃ (194°F) for safety & 75℃ [ 167°F ] for life | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:75℃ (167°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: TBDg (TBD lb)±5%/PCS; 20PCS/Carton;TBDkg(TBD lb)±5%/Carton; Carton Size: 312*283*178mm(12.28*11.14*7.0Inch)(L*W*H) | |
| Dimension | 268*55*35mm(10.55*2.16*1.38 Inch)(L*W*H) | |
