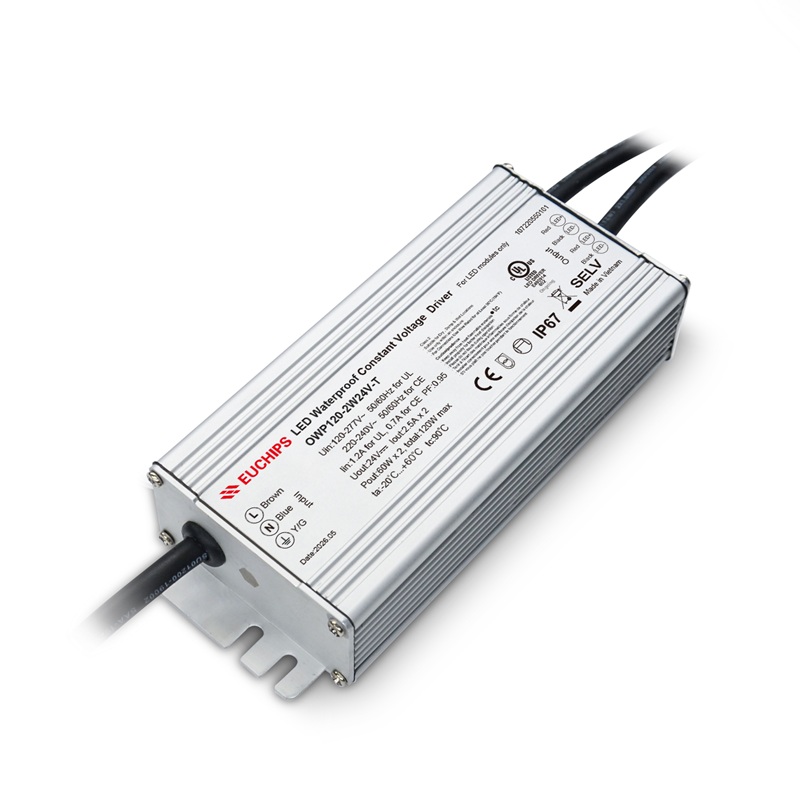

120W 24VDC 2ch Waterproof Non-dimmable CV Driver OWP120-2W24V-T
Product Features
·Dual-channel constant voltage output, per channel 2.5A Max
·Input Voltage Range 120-277Vac
·Protection: short circuit, Overload, Overcurrent, Overtemperature
•50,000Hour Life @ tc=80℃
•5 Year Warranty
•Flicker free
•Safety according to UL8750 &UL 1310
·Suitable for Dry , Damp & Wet Locations
|
Model |
OWP120-2W24V-T | |
|
Input |
Efficiency | ≥90%@120VAC, ≥92%@230VAC, ≥92%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Input voltage range | 100VAC-305VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.16A@120VAC, 0.62A@230VAC, 0.53A@277VAC | |
| PF | ≥0.95@120VAC, ≥0.95@230VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <10%@230VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start, 36.6A@120VAC 264us, 76.4A@277VAC 116us | |
| No-load power | <0.5W@120VAC | |
| Turn on Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 2.5A*2 Channel |
| Voltage | 24VDC | |
| Voltage Range | 24VDC±3% | |
| Power | 60W per channel, total 120W | |
| Channel | 2 | |
| Line Regulation | ±1% @full load | |
| Load Regulation | ±3% @full load | |
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Protection | Short Circuit | No output, Auto-recovery after Fault Clearance |
| Overload | No output, Auto-recovery after Fault Clearance | |
| Overcurrent | No output, Auto-recovery after Fault Clearance | |
| Overtemperature | Reduce power 50%, auto-restart after normal temperature | |
| Safety&EMC | Surge | L-N: 6kV, L-PE: 6kV, N-PE: 6kV, L&N-PE: 6kV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | UL8750,EN61347-1,EN61347-2-13 | |
| EMI | EN55015, FCC Part 15 Class B @ 120~277V | |
|
Others |
Working Temp. | -40℃~+60℃ (-40°F~140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F~185°F), 20-90%RH | |
| tc | 90℃ (194°F) for safety & 80℃ (176°F)life | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:80℃ (176°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Dimension | 165*67.5*35mm(L*W*H) 6.49*2.66*1.38 In | |
| Packing(weight) | Net weight: 676g(1.49 lb)±5%/PCS; 20 PCS/Carton;13.52kg(29.8lb)±5%/Carton; Carton Size: 368x220x210mm(14.49×8.66×8.26lb)(L*W*H) | |
