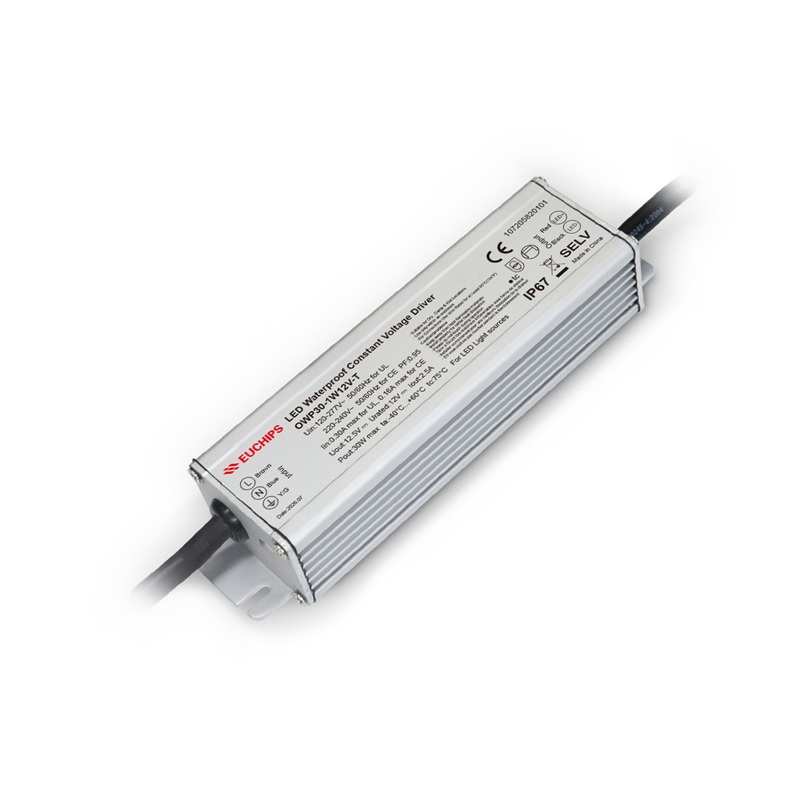

30W 12VDC Waterproof Non-dimmable CV Driver OWP30-1W12V-T
Product Features
·Single-channel 12V constant voltage output, up to 2.5A / 30W
·Wide input voltage range: 120–277Vac
·Extended ambient operating temperature range: -40°C to +60°C
·Built-in over-temperature protection with automatic power derating
·Comprehensive protection: short circuit, overload, overcurrent, and over-temperature
·50,000-hour lifetime at tc = 75°C
·5-year warranty
·Flicker-free output
·Safety according to UL8750 & UL 1310
·Suitable for Dry , Damp & Wet Locations
Technical Paramaters
|
Model |
OWP30-1W12V-T | |
|
Input |
Efficiency | ≥86%@120VAC, ≥87%@230VAC, ≥88%@277VAC, full load |
| Voltage | 120VAC-277VAC for UL, 220-240V~for CE | |
| Input voltage range | 108VAC-305VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.30A@120VAC, 0.16A@230VAC, 0.135A@277VAC, full load | |
| PF | ≥0.95@120VAC, ≥0.95@230VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <10%@230VAC, <10%@277VAC, full load | |
| Inrush Current(max) | Cold start, , 20A@120VAC 186us, 30A@230VAC 200us, 34A@277VAC 200us | |
| No-load power | <0.5W(@120VAC-277VAC) | |
| Turn on Time | <0.50s(@120VAC-277VAC)(When the light begins to shine) | |
|
Output |
Current | 2.5A |
| Voltage | 12VDC | |
| Voltage Range | 12VDC±3% | |
| Power | 30W | |
| Channel | 1 | |
| Overpower Limit | ≥135% | |
| Ripple | ≤120mV Test condition: pure resistive load, output connected via 15 cm twisted-pair wires, with a 47μF electrolytic capacitor and a 0.01μF ceramic capacitor connected in parallel at the load end (20 MHz bandwidth). | |
| Protection | Short Circuit | Output shut down, auto-recover after fault cleared. |
| Overload | Current reduction hiccup protection, auto-recover after fault cleared. | |
| Overcurrent | Current reduction hiccup protection, auto-recover after fault cleared. | |
| Overtemperature | Power reduces to 50% at 70-80°C ambient (tc 90-100°C); auto-recovery when temperature drops. | |
|
Safety&EMC |
Surge | L-N: 6kV, L-PE: 6kV, N-PE: 6kV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PE:1500Vac/1min/<5mA O/P-PE:500Vac/1min/<5mA | |
| Safety standards | EN61347-1, EN61347-2-13, UL8750, UL1310, UL879 | |
| EMI | EN55015@230VAC, FCC Part 15 Class B@120/277VAC | |
| Insulation Resistance | 5Mfi | |
|
Others |
Working Temp. | -40℃~+60℃ (-40°F~140°F) |
| Storage Temp., Humidity | -40℃~85℃ (-40°F~185°F), 20-95%RH | |
| tc | 75℃ (167°F) for safety & life | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:75℃ (167°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Dimension | 156*40.8*30mm(L*W*H) 6.14*1.61*1.18 In | |
| Packing(weight) | Net weight: 350g(0.77 lb)±5%/PCS; 30 PCS/Carton;11.0kg(24.3lb)±5%/Carton; Carton Size: 392x202x204mm(15.44×7.96×8.32In)(L*W*H) | |
