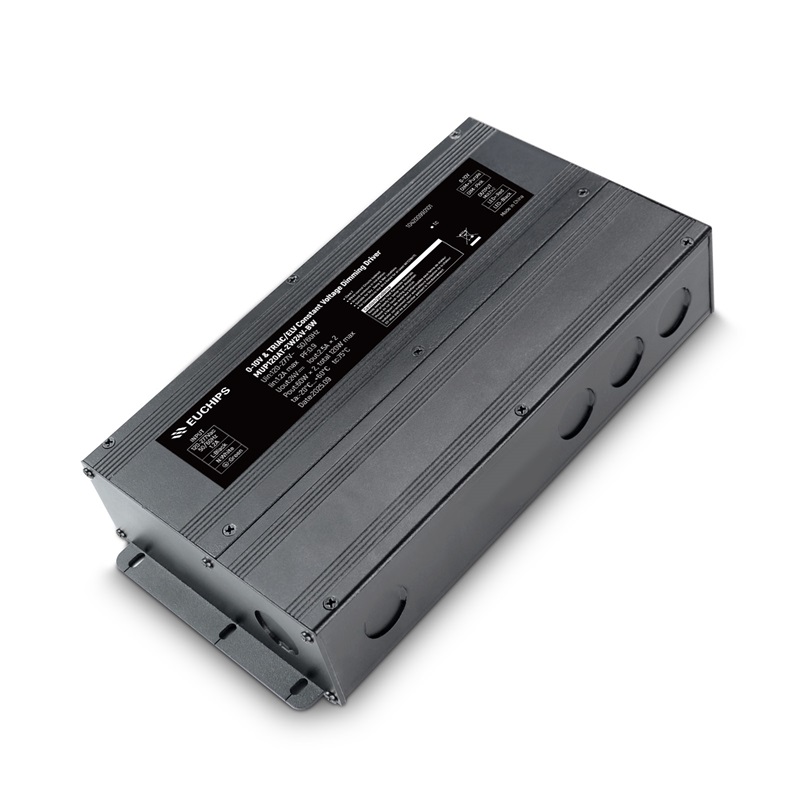

120W 24V 0-10V &Triac CV led driver MUP120AT-2W24V-BW
Product Features
·Dual channel constant voltage output, per channel 2.5A Max
·Input Voltage Range 120-277Vac
·Support 0/1-10V, Potentiometer, PWM, Triac/ELV Dimming
·TRIAC and ELV dimming at 120 Vac only
·0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Overload; short circuit; Overcurrent
·Class 2 Output
·Safety according to UL8750 &UL 1310
·Suitable for Dry , Damp & Wet Locations
Technical Paramaters
| Model | MUP120AT-2W24V-BW | |
|
Input |
Efficiency | ≥88%@120VAC, full load ≥90%@230-277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.20Amax@120VAC 0.61Amax @230VAC 0.52Amax @277VAC | |
| PF | ≥0.95@120VAC, ≥0.90@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | 26.20Amax@120VAC 720us 58.5@277 600us | |
| Standby power | <4W@120VAC | |
| No load power | <4W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Output Current | 2 Channel, 2.5A per channel |
| Output Voltage | 24VDC | |
| Voltage Range | 24VDC ±3% | |
| Output Power | 60W per channel, total 120W | |
| Output Channel | 2 | |
| Power limit | 120% | |
| Ripple | ≤720mV | |
| PWM Frequency | 20KHz PWM | |
|
Function |
Dimming Type | 0/1-10V ,Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
|
Protection |
Short Circuit Protection | Shut down output, Auto-recovery after Fault Clearance |
| Overload Protection | Hiccup protection, Auto-recovery after Fault Clearance | |
| Overcurrent Protection | Hiccup protection, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N: 4kV L-N-PG:6kV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | FCC PART15B | |
| EMC Immunity | IEC 61000-4-2-3-4-5-6-8-11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | (-20~+60) ˫ [-4°F~140°F] |
| Storage Temp., Humidity | (-40~+90)˫ [-40°F~194°F] 20~90%RH | |
| tc | 75˫ [ 167°F ] | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc: 75˫ [ 167°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 1050g (2.31 lb)±5%/PCS; 12PCS/Carton;12.7kg(28 lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
