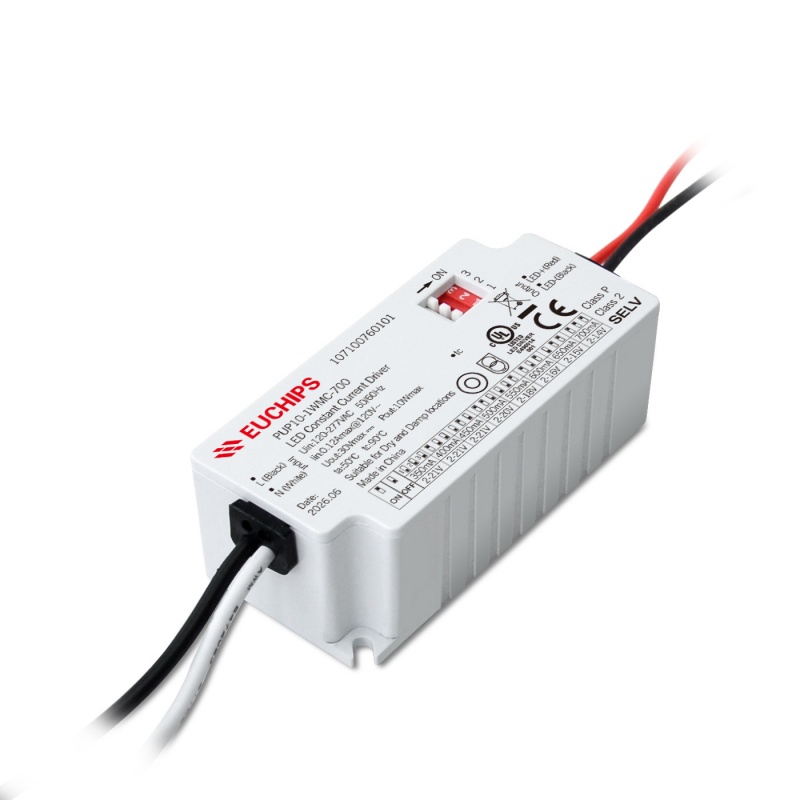

10W 700mA Non-dimmable CV Driver PUP10-1WMC-700
Product Features
·Single channel output, output current level selectable by DIP S.W.
·Input voltage of 100VAC ~ 240VAC
·Protections: Short circuit, Over load，Over voltage
·Suitable for indoor LED lighting application
| Model | PUP10-1WMC-700 | |
|
Input |
Efficiency | 76%@230VAC, Full load |
| Frequency | 50/60Hz | |
| Voltage | 100VAC-240VAC | |
| PF | 0.94@230VAC, Full load | |
| THD(full load) | <15%@230VAC, Full load | |
| Current | 0.15Amax@100VAC | |
| Inrush Current | Cold start,30A@230VAC | |
| Standby Power | <1W | |
| Current/Voltage/Power | 350mA/2-21V/7.35W 450mA/2-21V/9.45W 550mA/2-18V/9.9W 650mA/2-15V/9.75W400mA/2-21V/8.4W 500mA/2-20V/10W 600mA/2-16V/9.6W 700mA/2-14V/9.8W | |
| Output | Channel | 1 |
| No load output voltage | 60V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Dimension | 75*35*26.5mm(L*W*H) |
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | |
| G.W | 120g | |
| IP rating | IP20 | |
| Working temp. | -20°C~50°C | |
| tc | 90°C | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85°C | |
| Material | PC | |
| Switch cycle | >25,000 times | |
