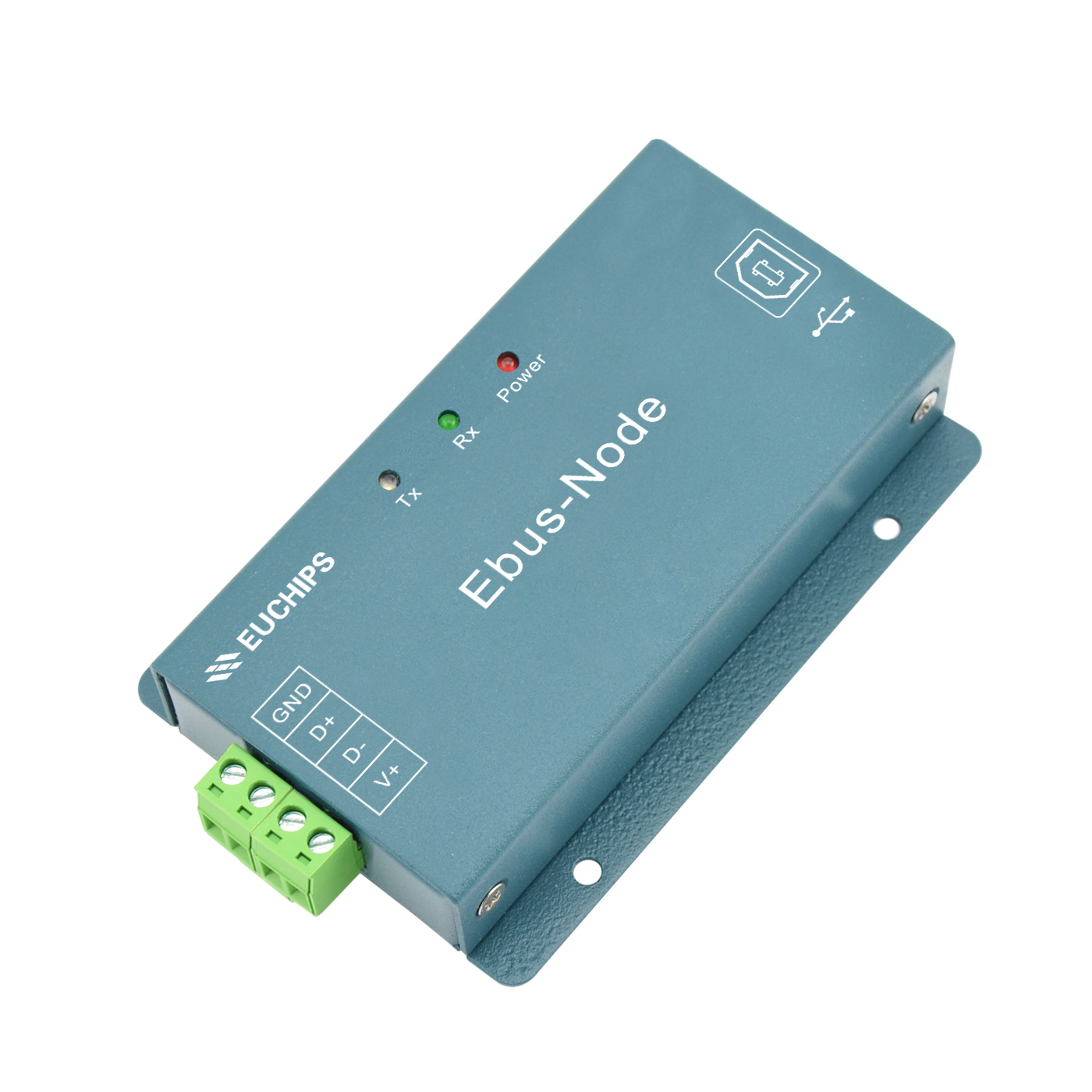

EU-BUS Debugger Ebus-Node
Technical Paramaters
| Item | Parameter |
| Input Voltage | 12V DC |
| Transmission Signal | EU-BUS Signal |
| Power Indication(Power) | LED Continous On |
| Communication Indication(Rx,Tx) | LED Flashing |
| Size(mm) | 108*72*23 |
| G.W | 200g
℃ ℃ |
| Work Temp. | -20 -50 |

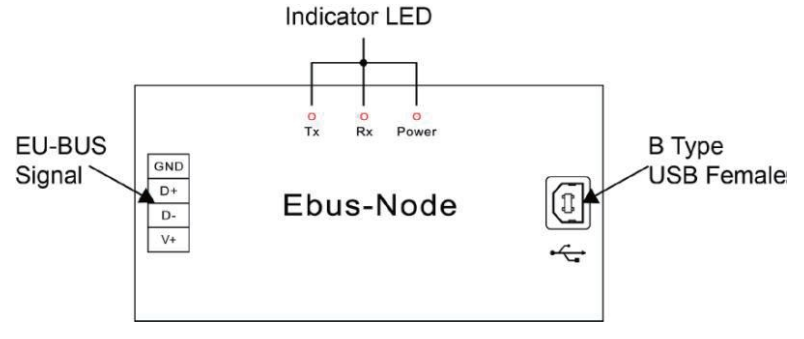

Appearance

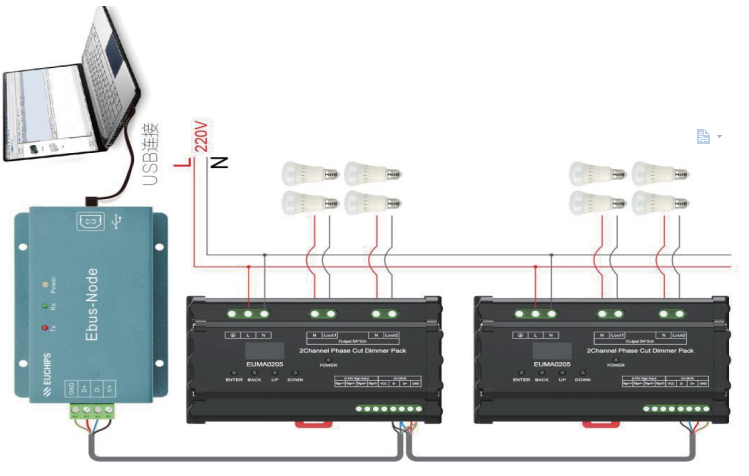

Wiring Diagram

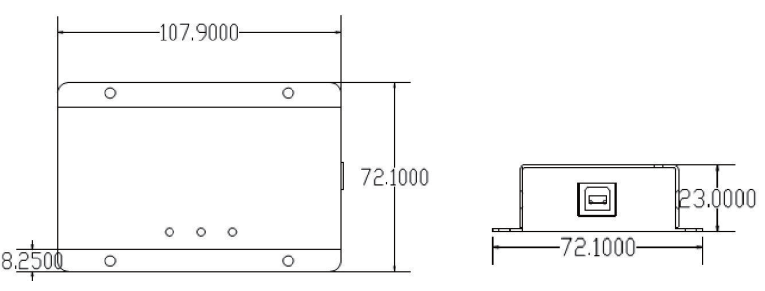

Size(mm)

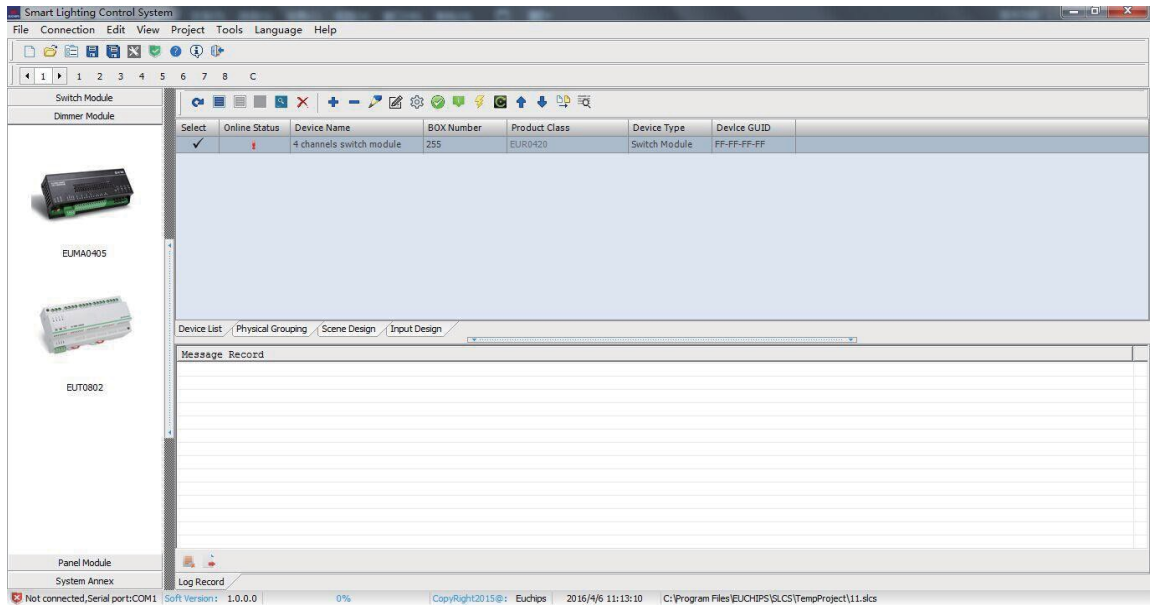

PC Software
This controlling software is installed in the PC, it communicates and controls Ebus-node by a usb line. The fast communication and convenient Maintenance make it easier for operation between user and machine.
