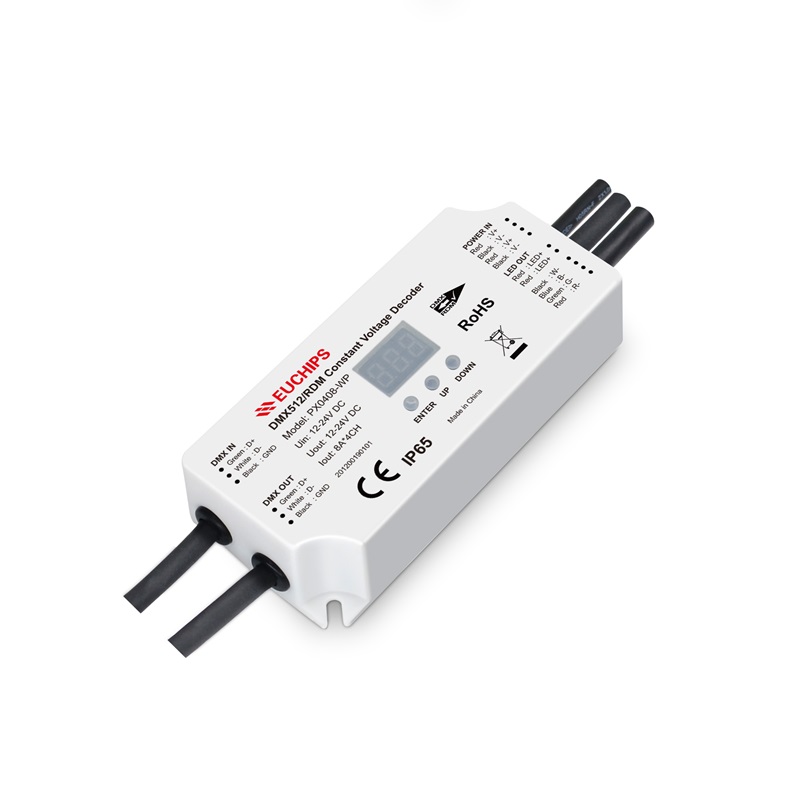

DMX Constant Voltage Waterproof Decoders PX0408-WP
Summary
Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.
Product Features
Compliant with DMX512/1990 and RDM/2009 international standard protocols
DMX address can be flexibly set via buttons
Equipped with a lamp color selection mechanism, capable of controlling fixtures with 1 to 4 basic colors
For convenient installation and use, the default address code is set to 1 upon factory shipment
Waterproof housing design with an IP65 rating
Widely applicable for buildings, hotels, KTVs, residential spaces, and other venues
| Model | PX0408-WP |
| Input Voltage | 12-24V DC |
| Input signal | DMX512/RDM |
| Output Voltage | 12-24V |
| Output Current | 8A |
| Output Power | 384W(12V) / 768W(24V) |
| Output Channel | 4CH |
| Short Circuit Protection | YES |
| Overcurrent Protection | YES |
| Standby Power | <0.5W(24V) |
| Working temp. | -20℃~+50℃ |
| Relative humidity | -40℃~85℃, 20%-90%RH (No condensation) |
| IP rating | PC |
| IP rating | IP65 |
| Weight | 607g |
| Switch cycle | 50000h |
| Warranty Condition | 5 years |
| Dimension | 148mm*68mm*36mm (L*W*H) |
| Pack Information | N.W: — ±5%/PCS; — PCS/Carton; —kg(25.9 Ib)±5%/Carton; Carton Size: —x—x—mm(L*W*H) |
