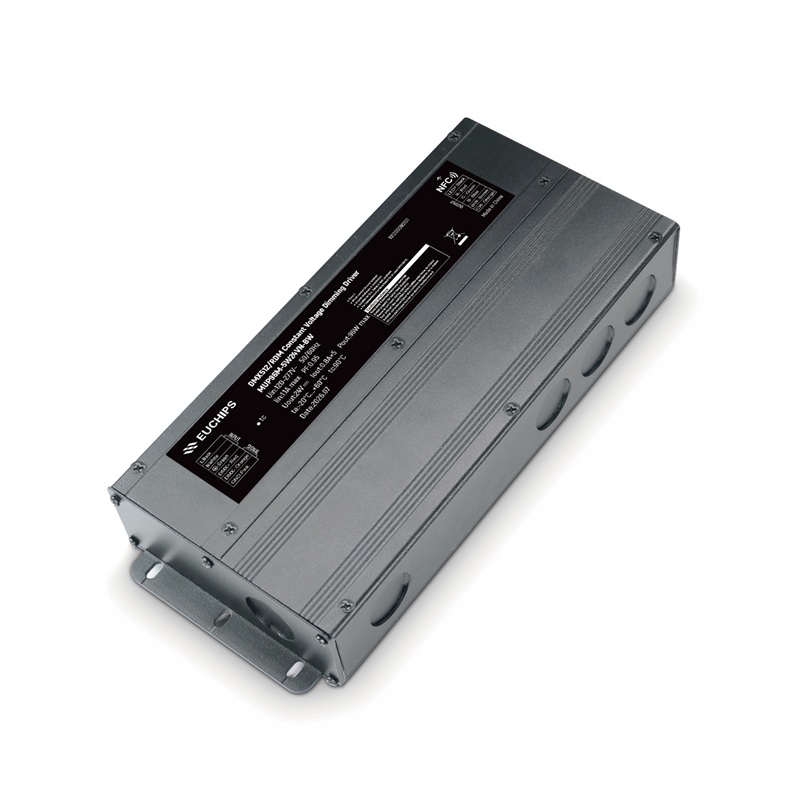

96W 24VDC Waterproof DMX CV Driver MUP96M-5W24VN-BW
·5-channel constant voltage output, with a maximum output current of 0.8A per channel.
·Supports DMX512/RDM signal.
·The number of output channels is 5.
·NFC-enabled for reading and writing DMX addresses and adjusting output voltage.
·Smooth dimming curve, free from flicker.
·Equipped with output short-circuit protection and overload protection, And overcurrent protection
·lifetime: 50,000 hours @ tc=90°C (194°F)
·5-year warranty
·UL Class 2.
·Safety compliance with UL8750 & UL 1310.
·Suitable for Dry , Damp & Wet Locations
Technical Parameters
|
Model |
MUP96M-5W24VN-BW | |
|
Input |
Efficiency | ≥86%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.1Amax @120VAC, 0.6Amax@230VAC, 0.45Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.92@277VAC, full load | |
| THD | <10%@120VAC, <20%@277VAC, full load | |
| Inrush Current(max) | Cold start,20.30A@120VAC 264us | |
| Standby power | <2.0W@120VAC | |
| No load power | <2.0W@120VAC | |
| Start-up Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 5 channels, each with 0.8A |
| Voltage | 24VDC | |
| Voltage Range | Rated Output Voltage: 24VDC；Adjustable Output Voltage Range: 24–26VDC (via NFC)；Output Voltage Tolerance: ±5% | |
| Power | 96W | |
| Channel | 5 | |
| Ripple Voltage | ≤300mV | |
| PWM Frequency | 4KHz PWM | |
|
Function |
Dimming Type | DMX512/RDM |
| Dimming Range | 1%-100% (DMX) | |
| Dimming curve | Logarithm/Linearity (NFC Programming) | |
| Flicker | Flicker free | |
| Protection | Short Circuit | No output, Auto-Recover when fault removed |
| Over Load | Hiccup Protection, Auto-Recover when fault removed | |
| Over Current | Hiccup Protection, Auto-Recover when fault removed | |
|
Safety&EMC |
Surge | L-N:6kV L-N-PG:6kV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 Class P（CSA C22.2 NO.250.13-17） | |
| EMC Emission | FCC PART 15 Class B | |
| EMC Immunity | IEC 61000-4-2, -3, -4, -5, -6, -8, -11 | |
| Insulation Resisance | 5Mfi | |
