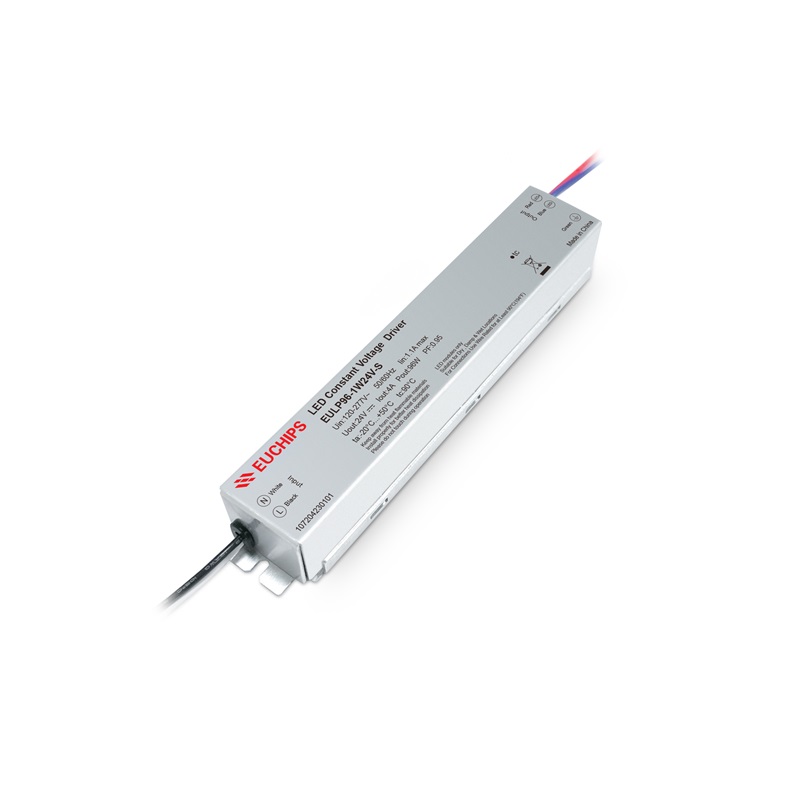

96W 24VDC Non-dimmable CV Driver MUP96-1W24V-S
Product Feature
·Input voltage range :120-277Vac
·Protection: Overload, short circuit, overcurrent, over-temperature
·Lifespan: 50,000 hours @ tc 70℃
·Class 2 output
·Complies with UL8750 and UL 1310 safety standards
·The compact body makes it easy to install in narrow Spaces
·It is suitable for both dry and damp places
·It is suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP96-1W24V-S | |
|
Input |
Voltage | 120~277 Vac |
| Frequency Range(Hz) | 50/60Hz | |
| ≥88%@120VAC, ≥92%,277VAC | ||
| PF | >0.95@120VAC, >0.95@277V , full load | |
| Current | 1.1Amax @120VAC 1.1Amax@277VAC , full load | |
| THD | <10%@120VAC , <20%@277VAC , full load | |
| Inrush current | Cold start , 8.6A@120VAC 140us , 3.6A@277VAC 120us | |
| No load power | ≤2.5W@120VAC | |
| Standby power consumption | ≤2.5W@120VAC | |
| Turn on delay Time | 0.5s, at120Vac (When the light begins to shine) | |
|
output |
Channel | 1 |
| Voltage | 24V | |
| Current | 4A | |
| Output Voitage | 24V±2% | |
| Power | 96W | |
| Ripple Voitage | ≤700mV | |
|
Protection |
Over load | Current reduction hiccup protection, self-recovery after fault elimination |
| Short circuit | Turn off the output and it will recover automatically after the fault is eliminated | |
| Over current | Current reduction hiccup protection, self-recovery after fault elimination | |
| Over temperature | Current reduction hiccup protection, self-recovery after fault elimination | |
|
Safety&EMC |
Surg | L-N : 2KV, L-N-PG : 2KV |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA , I/P-G:1500Vac/1min/<5mA , O/P-G:500Vac/1min/<5mA | |
| Safety standards | UL8750 listed Class 2 | |
| EMC Eission | FCC PART15 ClassA | |
| Insulation Resisance | 5MΩ | |
|
Others |
Dimension | 151*29*22mm (5.94*1.14*0.866 Inch) ((L*W*H) |
| Packing size | Net weight: —g±5%/PCS; —PCS/Carton; —kg±5%/Carton; Carton Size: —*—*—mm(L*W*H) | |
| Working temp. | ta:-20~+50℃ , (-4°F-122°F) | |
| tc | 90℃ (194°F) | |
| Storage Temp., Humidity | -20℃ ~90℃ (-4°F-122°F) , 20-90%RH | |
| Lifetime | 50,000h@tc:70℃ (158°F) | |
| Warranty | 5years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | >25000 times | |
