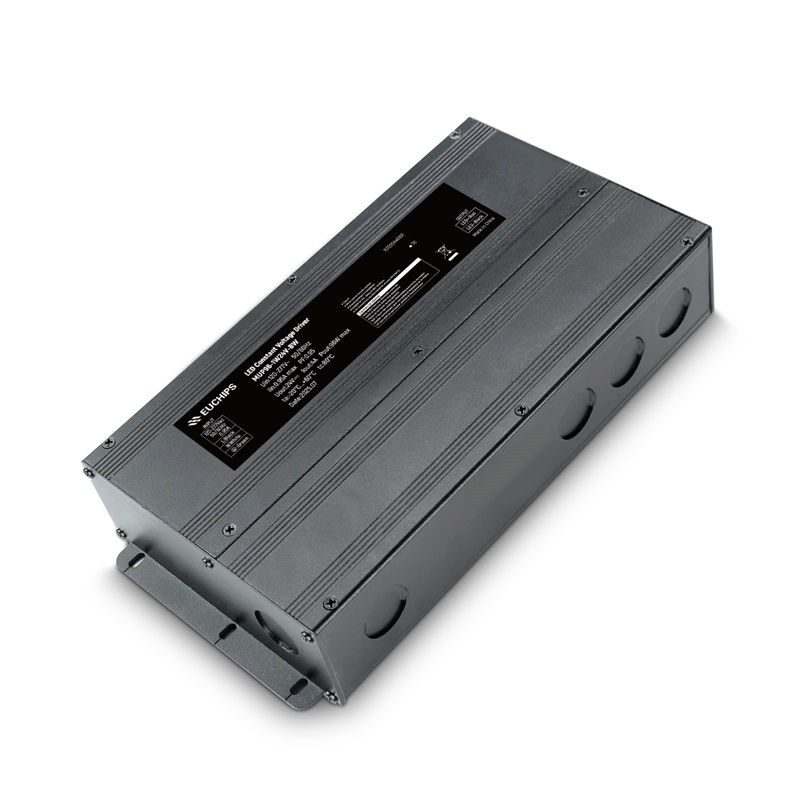

96W 24VDC Non-dimmable CV Driver MUP96-1W24V-BW
Product Feature
·Single channel constant voltage output, Output Current 4A Max
·Protection: Overload; short circuit; Overcurrent
·Class 2 Output
·Safety according to UL8750 &UL 1310
·Lifetime50,000h@tc80℃
·Warranty Condition 5 years @tc80℃
·Suitable for Dry , Damp & Wet Locations
Technical Parameters
| Model | MUP96-1W24V-BW | |
|
Input |
Efficiency | 88%@120VAC, Full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.95Amax@120VAC, 0.55Amax@230VAC, 0.45Amax@277VAC, Full load | |
| Power Factor | >0.95@120VAC, Full load | |
| THD | <20%@120VAC, <20%@277VAC, Full load | |
| Inrush Current | Cold start, 28A@120VAC 220us, 70A@277VAC 150us | |
| No load power | < 0.5W | |
|
Output |
Voltage | 24VDC |
| Current | 4.0A | |
| Power | 96W | |
| Channel | 1 | |
| R & N (Max) | ≤300mV Vp-p | |
| Over power limit | ≤104% | |
| Turn On Time | <0.75s, @120Vac (When the light begins to shine) | |
| Protection | Short circuit | Shut down output, Auto-recovery after Fault Clearance |
| Over load | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over Voltage | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over temperature | Shut down and auto-restart after normal temperature | |
|
Safety & EMC |
Surge | L-N:6kV, L-N-PG: 6kV |
| Withstand Voltage | I/P-O/P: 2000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA; | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Working Temp. | -20℃~60℃[-4°F~140°F] |
| Storage Temp.; Humidity | -40℃~85℃[-40°F~194°F], 20-90%RH | |
| Tc | 80℃[ 176°F ] | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃[ 176°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: TBDg (– lb)±5%/PCS; 12PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
