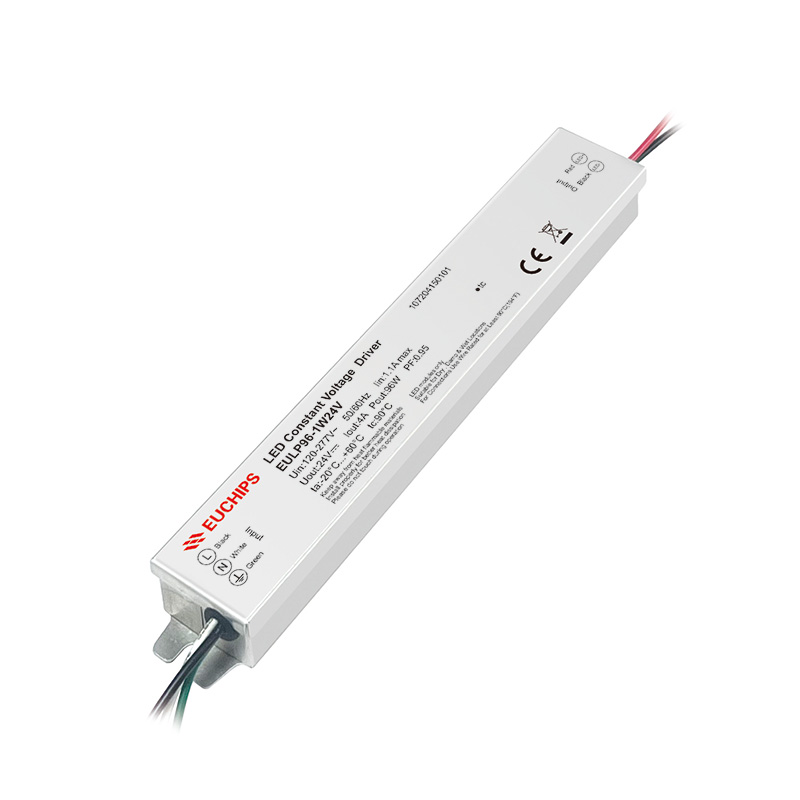

96W 24V NON dimming LED Driver EULP96-1W24V
Summary
EULP96-1W24V-WS is a constant voltage output LED driver.
The compact body is easy to install in small spaces, with stable output and high efficiency.
Product Feature
•Supply Voltage: 120-277Vac
•Protection: Short circuit, Overload, Overcurrent, Over-temperature
•50,000Hour Life @ tc 85℃
•Class 2 output
•Safety according to UL8750 &UL 1310
•Suitable for Dry , Damp Locations
•Suitable for indoor LED lighting applications
Technical Parameters
| Model | EULP96-1W24V | |
|
Input |
Voltage | 120~277 Vac |
| Frequency Range(Hz) | 50/60Hz | |
| ≥91%@120VAC、≥93%230VAC,277VAC | ||
| PF | >0.95@120V、230V、277V full load | |
| Current | 1.1Amax @120VAC 0.6Amax@230VAC 0.45Amax@277VAC | |
| THD | <10%@full load | |
| Inrush current | Cold start,26.4A@120VAC 196us, 59.6A@277VAC 196uS | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤0.75S | |
|
output |
Channel | 1 |
| Voltage | 24V | |
| Current | 4A | |
| Output Voitage | 24V±3% | |
| Power | 96W | |
| Ripple Voitage | ≤240mV(p-p) | |
| No load output voltage | 24.7V max | |
| Protection | Overload | Hiccup Protection, Auto-recovery after Fault Clearance |
| Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over-temperature | Built-in temperature sensor: If the internal temperature exceeds the rated set value (100°C), the drive will enter a protective state (output derated by 50%).When the temperature returns to normal, the drive resumes normal output. | |
| Safety&EMC | Surg | L-N 4KV ；L-N-PG 4KV |
| Withstand Voltage | I/P-O/PI:3000Vac/1min/<5mA, I/P-G:1800Vac/1min/<5mA ， O/P-G:500Vac/1min/<5mA | |
| Safety standards | UL8750, UL1310，EN61347-1,EN61347-2-13 | |
| EMC Eission | EN55015, FCC PART15 ClassB | |
| Insulation Resisance | 5Mfi | |
|
Others |
Dimension | 182*27.4*20.6 |
| Packing size | EULP96-1W24V individual weight 208g (± 5%), packed in a box of 60 pieces | |
| Working temp. | ta:-40~+60℃, | |
| tc | 90℃ @120Vac | |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty | 5years | |
| IP rating | IP20 | |
| Material | Metal | |
| Switch cycle | >25000 times | |
