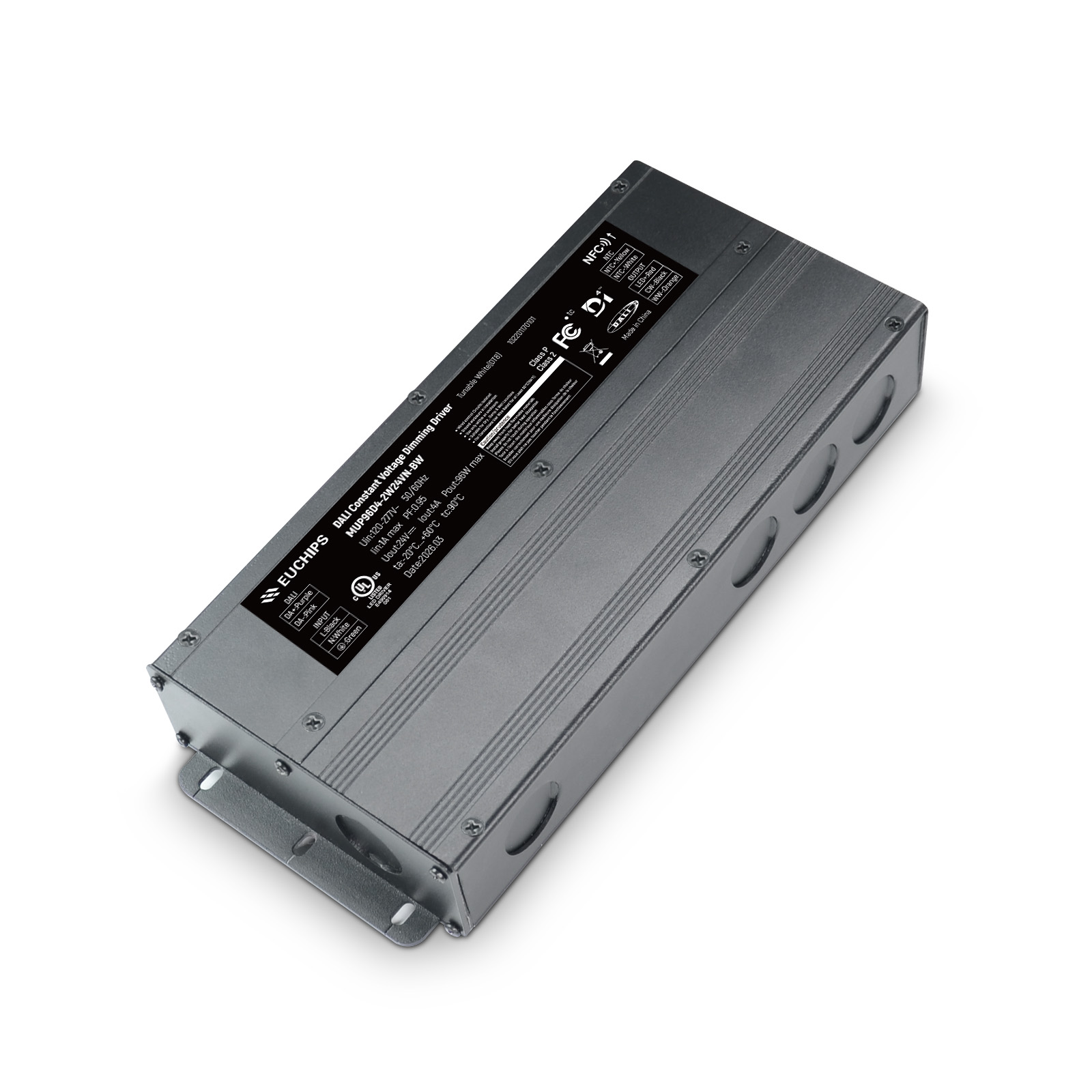

96W 24V 2ch D4i CV LED driver MUP96D4-2W24VN-BW
96W 24V 2ch D4i CV LED driver MUP96D4-2W24VN-BW
Features
• Standard-compliant (DiiA) digital interface including:
- Integrated DALI bus power supply (Part 250)
- Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
• Energy metering and advanced diagnostics
• Continuous dimming down to 1%
• Supports DC input
• Class 2 output
• 5-year limited warranty
Programming
DALI Parameter Configuration: Set address, group control,
fade time, dimming curve, etc.
Export DALI parameters to a .txt file for quick replication to
other devices.
DALI bus power supply status program
Technical Parameters
| Model | MUP96D4-2W24VN-BW | |
|
Input |
Efficiency | ≥89%@120VAC, ≥91%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Voltage(DC) | 170VDC-280VDC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1Amax @120VAC, 0.55Amax@230VAC, 0.45Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start,12A@120VAC 85us 61A@277VAC 220us | |
| Standby power | <1W@120VAC | |
| No load power | <1W@120VAC | |
| Start-up time | <0.75s, @120Vac (time-to-first-light) | |
|
Output |
Current | 4A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W | |
| Channel | 2 | |
| Load Regulation | ±5% | |
| Line Regulation | ±1% | |
| Power limit | ≥120% | |
| Ripple | ≤720mV | |
| PWM Frequency | 3.3K Hz | |
|
Function |
Dimming Type | DALI-2 DT8 D4i |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Color Temperature Range | 2700K-6500K (Default:2700K) | |
| Flicker | Flicker free | |
| Touch DIM (Push DIM) | N/A | |
|
Protection |
Short Circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Overload | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Extemal NTC Thermal Prot. | Output power reduces with temperature rise, auto-recovers after cooling. | |
|
Safety&EMC |
Surge | L-N: 2.5kV L-N-PG: 2.5kV (Ring Wave) |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA I/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Emission | EN IEC 55015:2019 + A11:2020 , EN 61000-3-2:2019 Class C, EN 61000-3-3:2013/A2:2021 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃, 20-95%RH (-40°F-185°F) | |
| tc (for UL) | 90℃ (194°F) | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000小时@tc:70℃ (158°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: TBDg (– lb)±5%/PCS; 12PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
