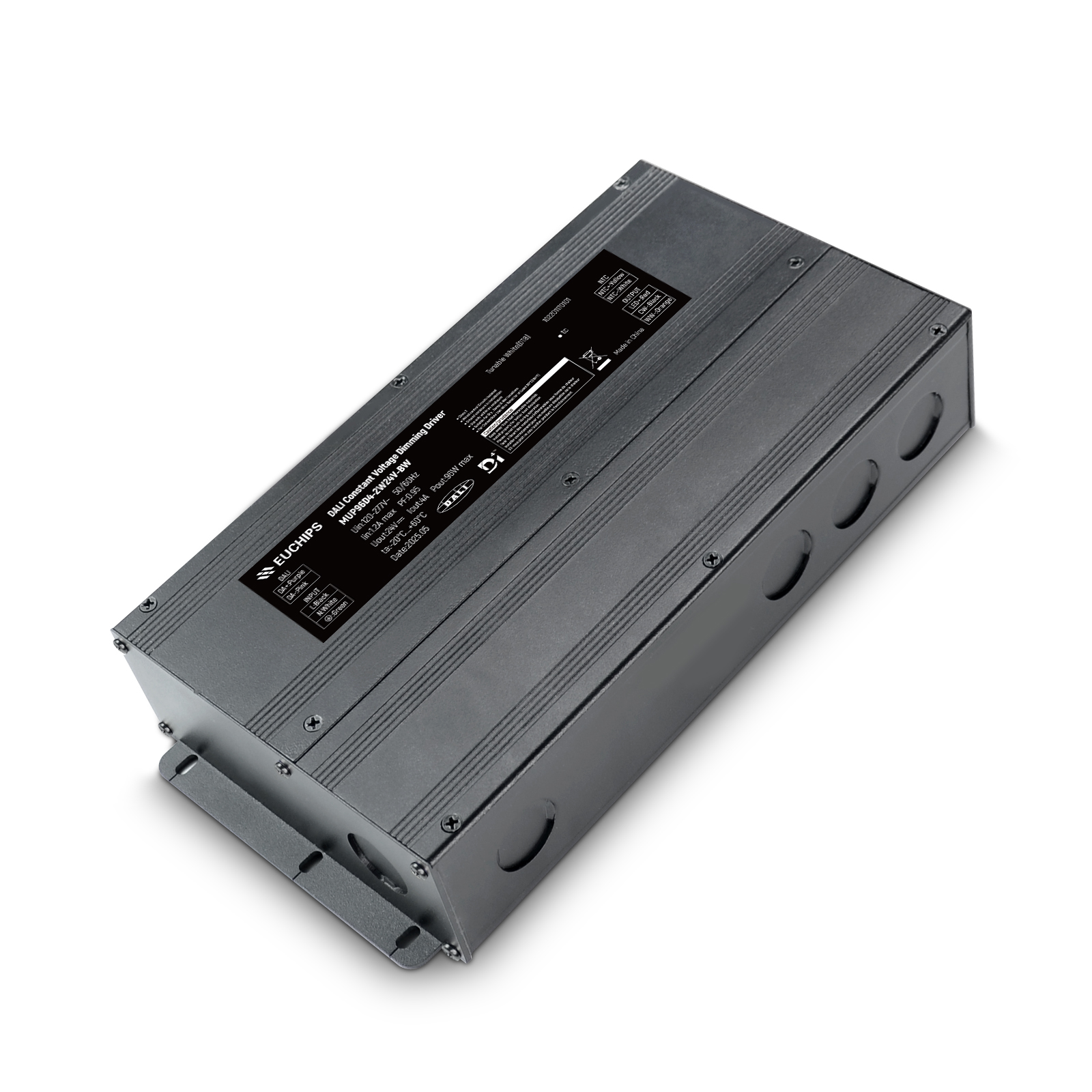

96W 24V 0-10V DALI CV Driver MUP96D4-2W24V-BW
Product Features
·Dual channel constant voltage output, Output Current 4A Max
·Input Voltage Range 108-305Vac
·Following the DALI protocol standard IEC62386-101 102 207 209(DT8)
·Dimming effect smooth, flicker free
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Overload, short circuit, Overcurrent, Over-temperature
·Safety according to UL8750 &UL 1310
·Class 2 Output
·Metal Junction Box Design
·Suitable for Dry , Damp & Wet Locations
Technical Paramaters
| Model | MUP96D4-2W24V-BW | |
|
Input |
Efficiency | ≥89%@120VAC, ≥91%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 0.9Amax @120VAC, 0.5Amax@230VAC, 0.4Amax@277VAC | |
| PF | ≥0.98@120VAC, ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, <15%@277VAC, full load | |
| Inrush Current(max) | Cold start,12A@120VAC 85us 61A@277VAC 220us | |
| Standby power | <1W@120VAC | |
| No load power | <1W@120VAC | |
| Start-up time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 4A |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W | |
| Channel | 2 | |
| Load Regulation | ±5% | |
| Line Regulation | ±1% | |
| Power limit | ≥120% | |
| Ripple | ≤720mV | |
| PWM Frequency | 3.3K Hz | |
|
Function |
Dimming Type | DALI-2 DT8 D4i |
| Dimming Range | 1%-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
|
Protection |
Short Circuit | Shut down output, Auto-recovery after Fault Clearance |
| Overload | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over-temperature | Reduce the output power, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N: 2.5kV L-N-PG: 2.5kV |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA I/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750 UL1310 CSA25013.CSA Class P | |
| EMC Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃, 20-95%RH (-40°F-185°F) | |
| tc | 80℃ (176°F) | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000小时@tc:80℃ (176°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: TBDg (– lb)±5%/PCS; 12PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) |
