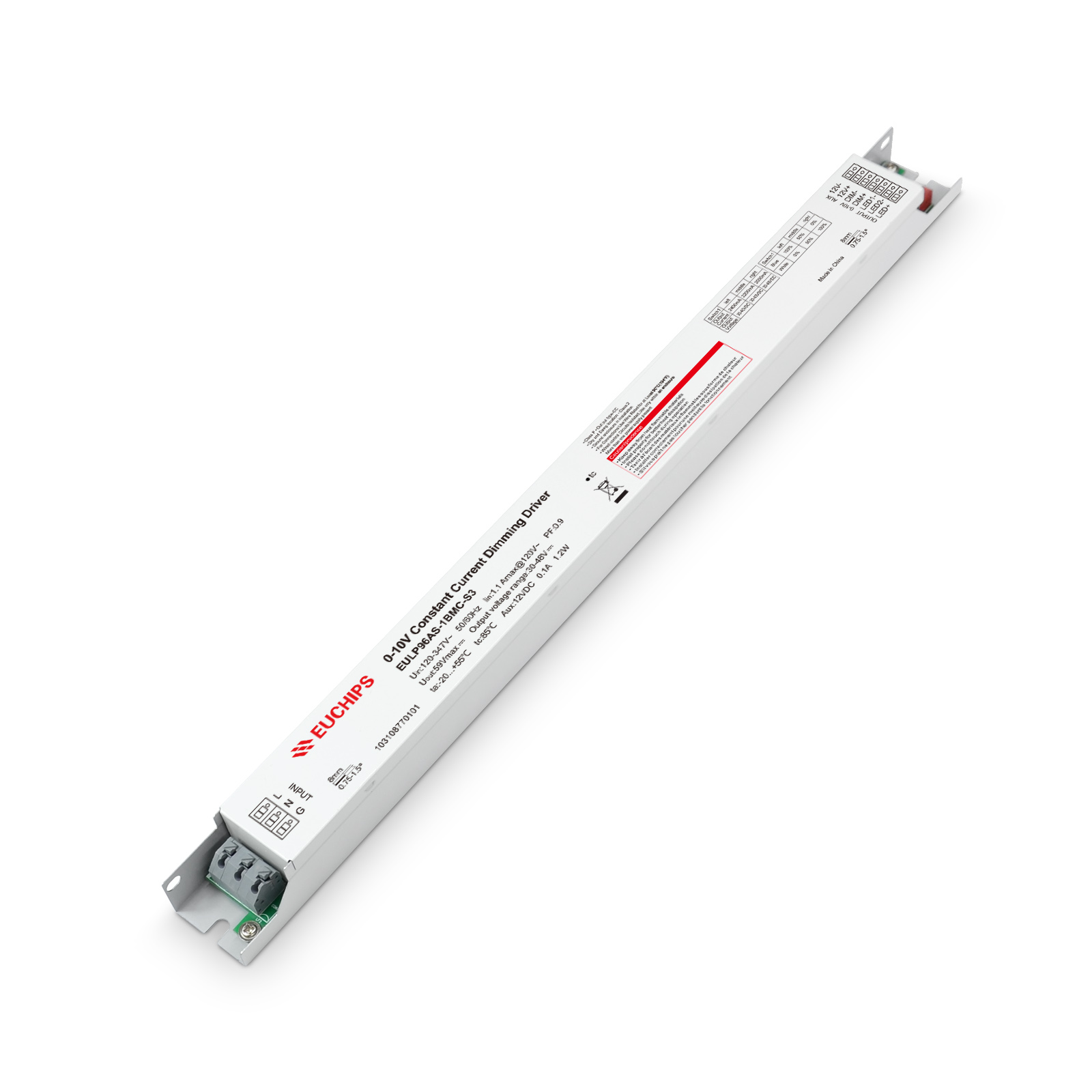

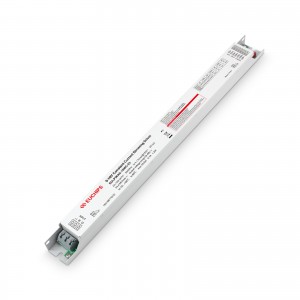

96W 2000-2400mA 0-10V CC Driver EULP96AS-1BMC-S3
Product Feature
•Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal)
•Single-channel constant current output with multiple selectable current levels
•Wide input voltage range: 120VAC ~ 347VAC
•Full load output when the signal is floating, allowing it to function as a power supply
•Short-circuit protection, overload protection, over-voltage protection
•Smooth dimming, flicker-free
•The output current ratio is adjustable in 3 levels, enabling the adjustment of the luminaire’s color temperature.
•50,000-hour lifespan @ Tc=85℃, 5-year warranty
•Safety according to UL8750 &UL 1310
Technical Parameters
| Model | EULP96AS-1BMC-S3 | ||||
|
Input |
Efficiency | ≥87%, full load | |||
| Rated Voltage | 120-347VAC | ||||
| Frequency Range(Hz) | 50/60Hz | ||||
| Current | 1.1A@120VAC 0.44A@277VAC 0.36A@347VAC | ||||
| Power Factor | ≥0.95@120VAC, ≥0.95@277VAC, ≥0.9@347VAC , full load | ||||
| THD(full load) | ≤10%@120VAC, ≤15%@347VAC , full load | ||||
| Inrush Current | Cold start, 15A@120VAC 100us, 36A@277VAC 100us, 47A@347VAC 100us | ||||
|
Output |
Switch | left | middle | right | |
| Output Current | 2400mA | 2200mA | 2000mA | ||
| Voltage Range | 30-40VDC | 30-43VDC | 30-48VDC | ||
| Output Power | 96W | 95W | 96W | ||
| Factory default current | 2000mA | ||||
| Current | 1 | ||||
| Current Tolerance | ±5% | ||||
| Ripple factor | <3% | ||||
| Standby power | 1.5W | ||||
| No load power | 1.5W | ||||
| No load output voltage | 59VDC max | ||||
| Auxiliary power supply | 12VDC, 100mA, 1.2W | ||||
| Start-up Time | ≤0.75s, @120Vac (When the light begins to shine) | ||||
|
Function |
Dimming Type | 0-10V | |||
| Dimming Range | 1%-100% | ||||
| Dimming curve | Linearity | ||||
| Flicker | Flicker free | ||||
|
Protection |
Short circuit | No-output, Auto-Recover when fault removed | |||
| Overload | Current reduction hiccup protection with automatic recovery after fault clearance. | ||||
| Overvoltage | Current reduction hiccup protection with automatic recovery after fault clearance. | ||||
|
Safety& EMC |
Surge | L-N: 2.5kV L-N-PG: 2.5kV (ringwave) | |||
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA 0/P-PG:500Vac/1min/<5mA 0/P-Signal:500Vac/1min/<5mA | ||||
| Safety Standards | UL8750 &UL 1310 | ||||
| EMI | FCC Part 15 Class B @120v FCC Part 15 Class A @277v | ||||
|
Others |
Working Temp. | -20℃~55℃(-4-131℉) |
| Storage Temp., Humidity | -40℃~80℃(-40-176℉), 5%-90%RH | |
| tc | 85℃(185℉) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc85℃(185℉) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 380×30×25.5mm (14.96×1.18×1 Inch) (L*W*H) | |
| Packing(weight) | TBD |
