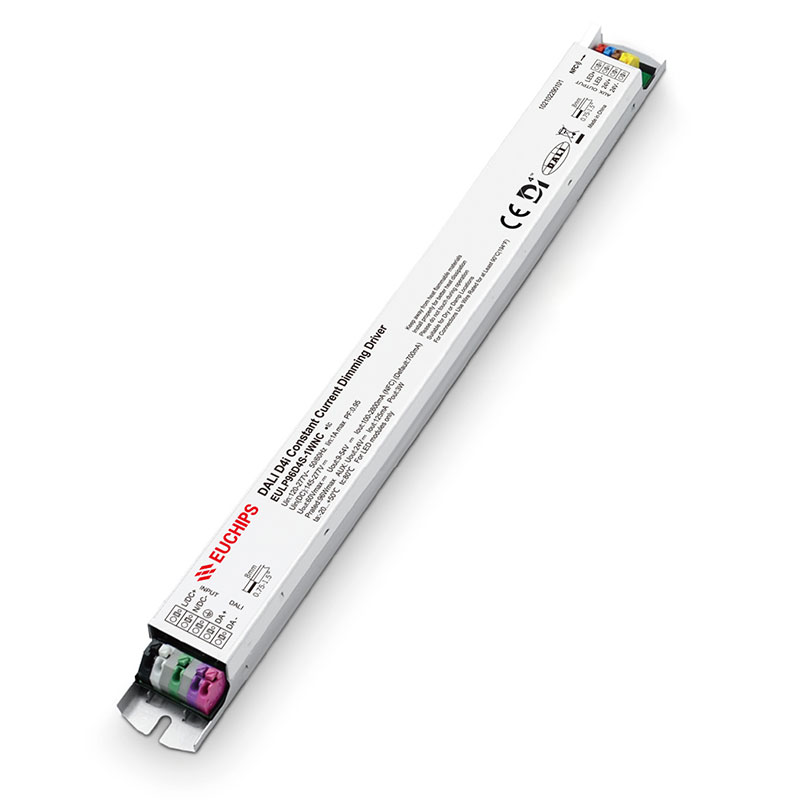

96W 100-2800mA DALI CC Driver EULP96D4S-1WNC
Advantages
•Enable interoperability with diverse wireless sensors/network systems
•Reduce complexity and cost of fixture by eliminating auxiliary components
ordinarily re quired for powering sensors, switching fixture off and monitoring energy use
•interface to any suitable sensor and ease of adjustable drive current
Product Feature
•Standard-compliant (DiiA) digital interface including:
-Integrated DALI bus power supply (Part 250)
-Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
•Energy metering and advanced diagnostics
•Continuous dimming down to 1%
•Drive current setting via NFC wireless programming
•5-year limited warranty
Programming
Adjustable Light Output (ALO) Adjustable Output Current (AOC) Luminaire Maintenance Luminaire Information
Technical Parameters
| Model | EULP96D4S-1WNC | |
|
Input |
Rated Voltage | 120~277 VAC/145~277VDC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥88%@120VAC , ≥90%@230VAC, ≥90%277VAC full load Auxiliary power supply unloaded | |
| Power Factor | ≥0.95@ full load | |
| current | 1Amax@120VAC, 0.5Amax@230VAC, 0.5Amax@270VAC | |
| THD | <10%@120-277VAC, full load | |
| Inrush Current(max) | Cold start,30A@120VAC 170us; 58A@230VAC 170us; 65A@277VAC 170us | |
| Standby power | ≤1W | |
| No load powe | ≤1W | |
| Turn on delay Time | <0.75s, @120Vac(When the light begins to shine) | |
|
Output |
channel | 1 |
| Voltage | 9-54V | |
| Current | 100-2800mA(NFC Set Current) (Default current:700mA) | |
| Output Voitage | 9-54V | |
| Power | 96W | |
| Current Accuracy | ±5%；700-500mA current accuracy ±7%； ＜500mA current accuracy ±10% | |
| Ripple current | 5% | |
| No load output voltage | 60V max | |
|
Aux Output |
Output Voltage | 24V±5% |
| Output Power | 3W | |
| Output Current | 125mA | |
| No load output voltage | 25V MAX | |
| Ripple Voltage | ≤1V | |
|
Function |
Dimming type | DALI 2.0 D4i (EN62386-250, 251, 252, 253, 150) |
| Dimming range | 1%-100% (Io≥400mA) | |
| Dimming curve | Logarithmic or Linear (NFC default logarithmic setting) | |
| Flicker | Flicker free | |
|
Protection |
Short circuit | Short circuit without output, troubleshooting results in normal output |
| Over load | Reduce current hiccup protection, troubleshoot and output normally | |
| Over Voltage | Reduce current hiccup protection, troubleshoot and output normally | |
|
Safety& EMC |
Surge | L-N 1000VAC L-N-PG: 2000VAC |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG:500Vac/1min/<5mA, O/P-DALI/AUX:1500Vac/1min/<5mA | |
| Safety standards | UL8750,EN61347-1,EN61347-2-13 | |
| EMC Eission | EN55015,FCC class B(120V)/class A(277V) | |
| Insulation Resisance | 5Mfi | |
|
Others |
Working Temp. | -20℃~+50℃ (-4°F~122°F) |
| Storage Temp., Humidity | -40℃~85℃, 20%-90%RH (-40°F~185°F) | |
| tc | 80℃(176°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ (176°F) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 360*30*21mm (14.17*1.18*0.827 Inch) (L*W*H) | |
| Packing(weight) | Net weight:350g(0.771 Ib)±5%/PCS; 50PCS/Carton; 17.5kg(38.58 Ib)±5%/Carton; Carton Size: 377*333*141mm (14.84*13.11*5.55 Inch)(L*W*H) |
