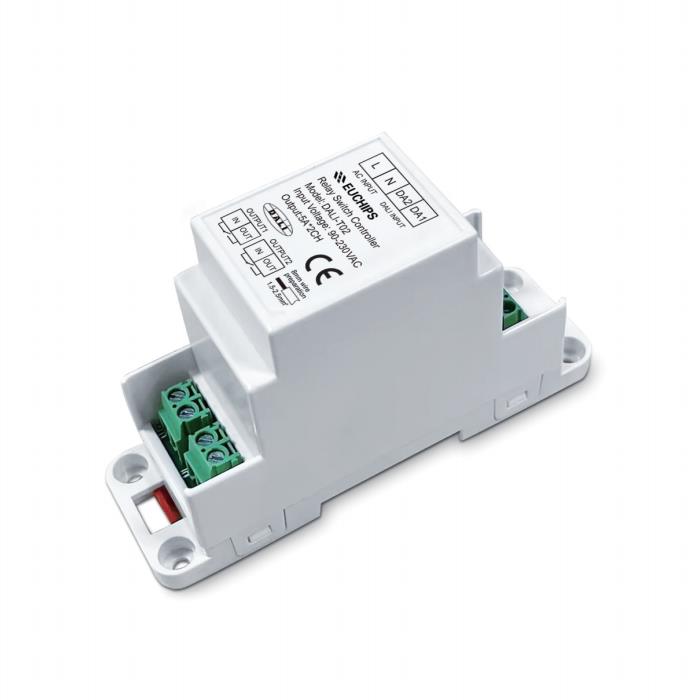

90-240VAC 5A*2ch DALI Relay DALI-T02
90-240VAC 5A*2ch DALI Relay DALI-T02
Features
· Follow DALI IEC62386 standard protocol
· Maximum support 5A*2 channel current
· Wide voltage supply
· Connected to DALI Bus, occupies 2 address, the address can be changed
· Support grouping, scene editing,
· Support two mounting modes: guide rail and screw fixation
Technical Parameters
| Model | DALI-T02 |
| The input voltage | 90-240 v AC |
| Input frequency | 50/60Hz |
| Maximum switching current | 5A*2CH |
| Communication protocol | Standard DALI Agreement |
| The equipment size | 111*35*67mm (L * W * H) |
| Packing size | 353*234*232mm (l * W * H) |
| Gross weight | 99g |
| Working temperature | - 20 ℃, 50 ℃ |
| Relative humidity | 20-90%RH |
