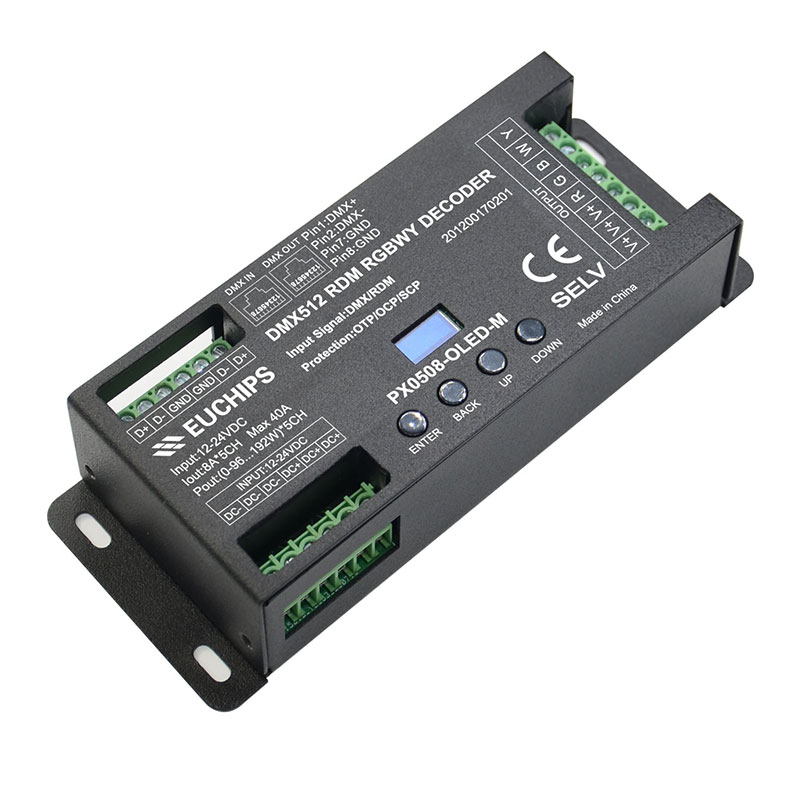

8A*5ch CV DMX Decoder PX0508-OLED-M

Welcome to use Px series DMX512/RDM decoder & driver. Px series adopt the advanced micro- computer control technology and converted the DMX512 , RDM/2009 digital signal widely used in international to the PWM Control signal. 1 ~5 channels output for option and each channel able to achieve 256 or 65536 gradations of controling , and also it can be used as the connector of pc digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Features

· 5 channels output, the maximum current of8A/ch for RGBwy decoder, up to 96ow · OLED Screen and touch button , more convenient operation

· 27 sence modes built-in , with speed and brightness adjust function

· 5 kinds of optional: DIM , CT, RGB , RGBW, RGBWY

· 2 kinds of DMX Ports: T-block RJ45

· short-circuit protection , overload protection , over-temperature protection · Fast self-testing function

· 8 bit 16 bit resolution optional(master mode support 8bit only) · dimming curve: liner, log

· Meets DMX512/1990 , RDM /2009 protocol

· supported RDM Parameters:

Dlsc_UNQUE BRANCH

Dlsc MUTE

Dlsc UN MUTE DEVICE INFO

SOFTWARE VERSON LABEL

DMX512/RDM START ADDRESS IDENTIFY DEVICE

MANUFACTURER LABEL

SUPPORTED PARAMETERS

Technical Parameters

Model: PX0508-OLED-M

Input Signal: DMX512 1990/RDM 2009

Input Voltage: 12-24V

Output Voltage: 12-24V

Output Current: 8A*5CH MAX.40A

Control Mode: (0~96W…192W)*5CH MAX.960W

Dimming Curve: DIM/CT/RGB/RGBW/RGBW

Grey Level: Linear/Log

Protection: Short-circuit/ Over Load / Over Temperature

Dimension: 160*62*32.6mm(L*W*H)

G.W.: 322g

Operation Temperature: -20~50℃

Relative humidity: 20%~90%RH

Lifetime: 50,000h

Warranty: 5 years
