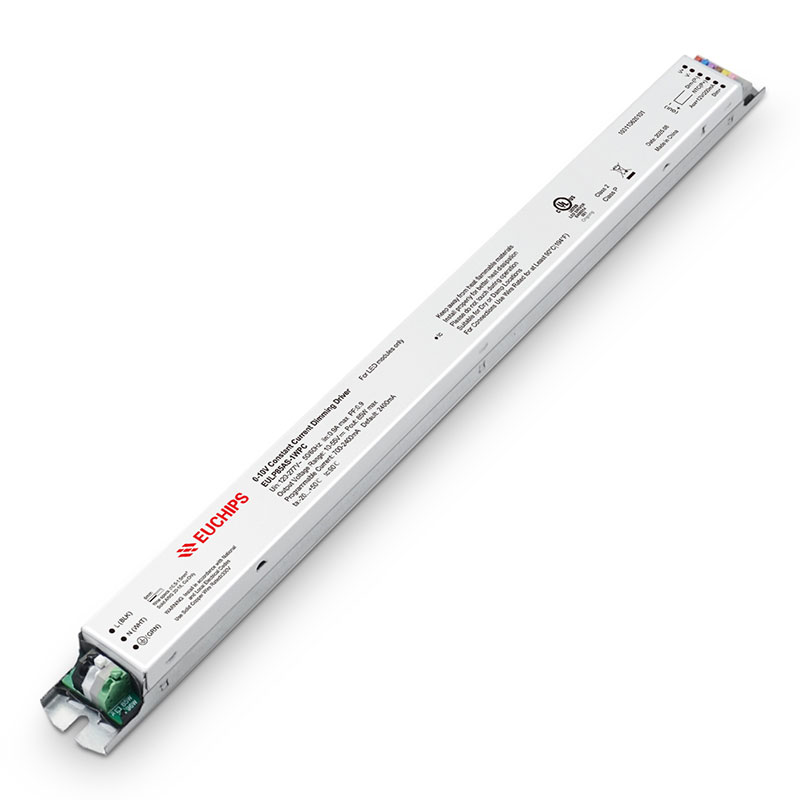

85W 700~2400mA 0/1-10V CC Driver EULP85AS-1WPC
Features
• Supports tri-mode dimming (0/1-10V active signal, adjustable resistor, PWM signal)
• Wide input voltage range: 120VAC ~ 277VAC
• Short-circuit protection, overload protection, over-voltage protection, Temperature protection(100±10℃)
• Auxiliary power supply: 12VDC, 200mA max.
• 50,000-hour lifespan @ Tc=85℃, 5-year warranty
• Driver applied in dry and damp environments
Programming Features
• Drive Current (10mA adjustment)
• Dimming curves (Linear and logarithmic adjustable)
• Dim-to-off voltage: (0.7V, 1.0V, 1.2V, or N/A)
• Hot reversal temperature (100 ± 10 ℃)
Technical Parameters
| Model | EULP85AS-1WPC | |
| Input | Efficiency | ≥87%@120VAC,full load |
| Rated Voltage | 120-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Electric current(Typical) | 0.80A@120VAC 0.38A@277VAC | |
| PF | ≥0.90@120VAC, ≥0.90@277VAC, Full load | |
| THD | ≤10%@120VAC, ≤20%@277VAC | |
| Surge current | Cold start, 52.2A@120VAC 14us, 94.4A@277VAC 37us | |
| Standby power | <2.5W | |
| No-load power consumption | <2.5W | |
| Start delay | 0.5s@120VAC, (When the light starts to illuminate) | |
| Output | Current Range | 700-2400mA (Default Current:2400mA) |
| Current Accuracy | ±5% | |
| Output voltage range | 10-55VDC | |
| Output power | 85W max | |
| Output channel | 1 | |
| Over power limit | ≥110% | |
| Ripple factor | ≤300mV | |
| Frequency | 20KHz PWM | |
| Function | Dimming Type | 0-10V |
| Dimming Range | 1%-100% | |
| Dimming curve | Linear/Logarithmic Adjustable | |
| Flicker | No strobe | |
| Protection | Overvoltage | Close the output and recover after troubleshooting |
| Overload | Reduce current burp protection, self-recovery after troubleshooting | |
| Overvoltage | Close the output and recover after troubleshooting | |
| Over Temperature | Reduce current burp protection, self-recovery after troubleshooting | |
| Safety& EMC | Surge | L-N: 4.5kV L-N-PG: 6kV |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA 0/P-PG:500Vac/1min/<5mA | |
| Safety Standards | UL8750, CSA-C22.2 No.250.13, US LED Driver Class 2, UL Class P | |
| EMI | FCC 47CFR Part 15 CLassA | |
| Insulation impedance | 10MΩ | |
| Others | Working Temp. | （-40~+50）°C [-40°F~122°F] |
| Storage Temp., Humidity | （-40~+90）°C [-40°F~194°F] ，20%-90%RH | |
| tc | 90℃(194°F) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc85℃ (185℉) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Packaging size (weight) | Net weight: 377g | |
| size | 424×30×26mm (16.69×1.18×1.02 Inch) (L*W*H) | |
