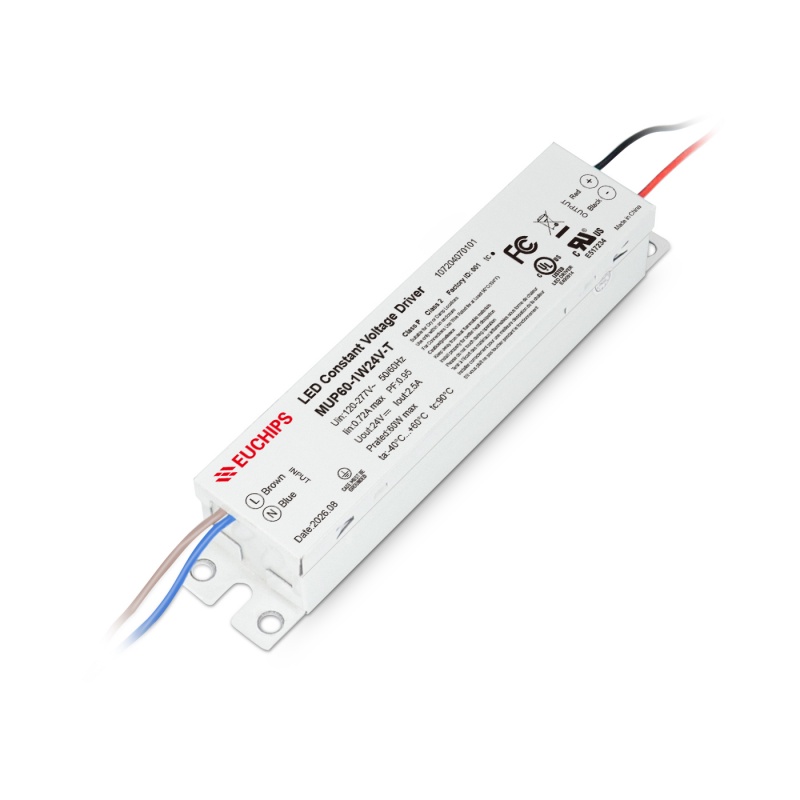

60W 24VDC Non-dimmable Waterproof CV Driver MUP60-1W24V-T
Product Features
·Single channel constant voltage output, Output Current 2.5A Max
·Protection: Overload, short circuit, Overcurrent, Over temperature
·Class 2 Output
·Safety according to UL8750 &UL 1310
·Lifetime: 50,000 h at tc = 90°C
·Warranty Condition 5 years @tc90℃
·Suitable for Dry , Damp & Wet Locations
| Model | MUP60-1W24V-T-BW | |
|
Input |
Voltage | 120VAC-277VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Efficiency | ≥88%@120VAC, ≥89%@230VAC, ≥90%@277VAC, full load | |
| PF | ≥0.95@120V-277VAC,full load | |
| Current | 0.72A max@120VAC, 0.35A max@230VAC, 0.28A max@277VAC, full load | |
| THD | <10%@120-277VAC, full load | |
| Inrush current | Cold start, 18A@120VAC 200us, 36A@230VAC 200us, 46A@277VAC 210us, | |
| No load power | <0.5W | |
| Turn on Time | ≤0.5s, at120-277Vac (When the light begins to shine) | |
|
Output |
Voltage | 24VDC |
| Voltage Accuracy | ±3% | |
| Output Current | 2.5A | |
| Power | 60W | |
| Channel | 1 | |
| Ripple Voltage | ≤240mV(p-p) | |
| Protection | Overload | Hiccup Protection, Auto-recovery after Fault Clearance |
| Short circuit | No Output, Auto-recovery after Fault Clearance | |
| Overcurrent | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Over temperature | Output power drops to 50% at 75-80°C ambient (Tc ≈95°C-100°C ), recovering automatically when temperature normalizes. | |
|
Safety&EMC |
Surge | L-N 6kV L/N-G 6kV |
| Withstand Voltage | I/P-O/P:3000Vac/1min/<5mA | |
| Safety standards | EN61347-1, EN61347-2-13; UL8750:2015 Ed.2+R:07Dec2022, UL1310, CSA-C22.2 No. 250.13:2022 Ed.5 | |
| EMI Emission | EN55015, EN61000-3-2 Class C,IEC61000-3-3; FCC Part 15 Class B(120V)/Class A(277V) | |
| EMS lmmunity | EN61547, EN61000-4-2, 3, 4, 5, 6, 8, 11 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working temp. | ta:-40…+60℃(-40°F~140°F) |
| tc | 90℃(194°F) for safety & life | |
| Storage Temp Humidity | -40℃~85℃(-40°F~185°F), 20-90%RH | |
| Lifetime | 50,000h@tc:90℃(194°F) | |
| Warranty | 5 years | |
| IP rating | IP65 | |
| Material | Metallic | |
| Switch cycle | >25000 times | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
| Packing size | Net weight: TBDg (– lb)±5%/PCS; 12PCS/Carton;–kg(– lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.8 Inch)(L*W*H) | |
