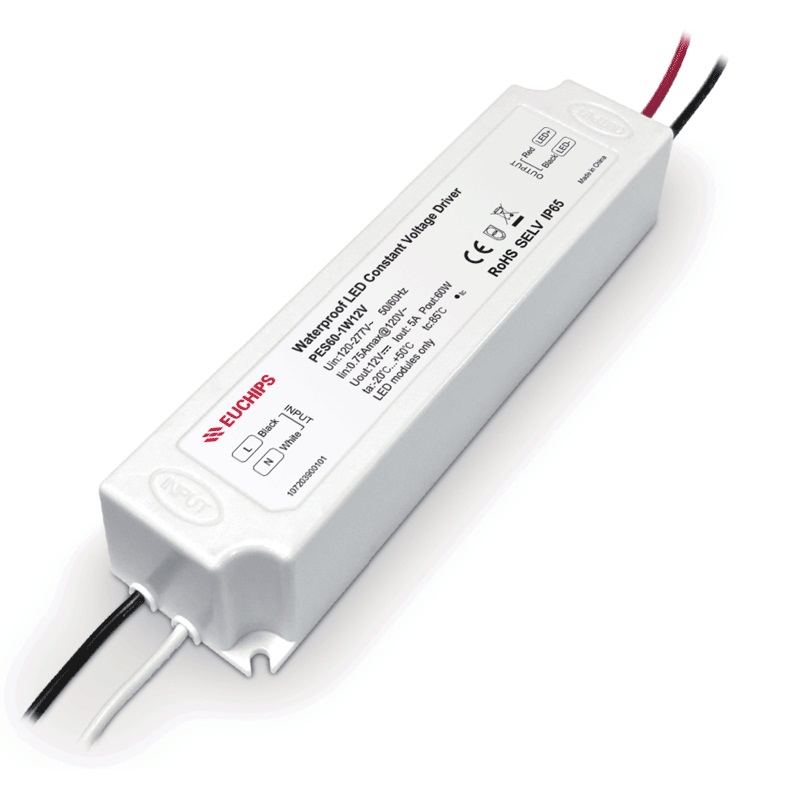

60W 12VDC Non-dimmable CV Driver PES60-1W12V
Product Feature
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PES60-1W12V | |
|
Input |
Efficiency | ≥84%@120VAC, full load ≥84%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 0.75Amax@120VAC 0.33Amax@277VAC | |
| PF | ≥0.95@120VAC, full load ≥0.95@277VAC, full load | |
| THD | <10%@120VAC, full load <20%@277VAC, full load | |
| Inrush Current | Cold start,30A@120VAC 305us Cold start,42A@277VAC 312us | |
| No load power | <0.5W | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Current | 5A |
| Voltage | 12VDC | |
| Power | 60W | |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Ripple | ≤216mV | |
| Over power limit | ≥126% | |
| Protection | Short Circuit | Short circuit without output, troubleshooting results in normal output |
| Over Load | Reduce current hiccup protection, troubleshooting output normal | |
| Over Current | Reduce current hiccup protection, troubleshooting output normal | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | EN61347, GB19510, UL8750 | |
| EMC Eission | EN55015，FCC Part 15 Class B | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | (-20~+50)℃ (-4°F~122°F) |
| Storage Temp.; Humidity | (-40~+85)℃ (-40°F~185°F) | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 405g(0.893 lb)±5%/PCS; 30PCS/Carton; 12.5kg(2.76 lb)±5%/Carton; Carton Size: 333*218*205mm(13.11*8.56*8.7 inch)(L*W*H) | |
| Dimension | 165.5*42*34mm(6.52*1.65*1.34 inch)(L*W*H) | |
