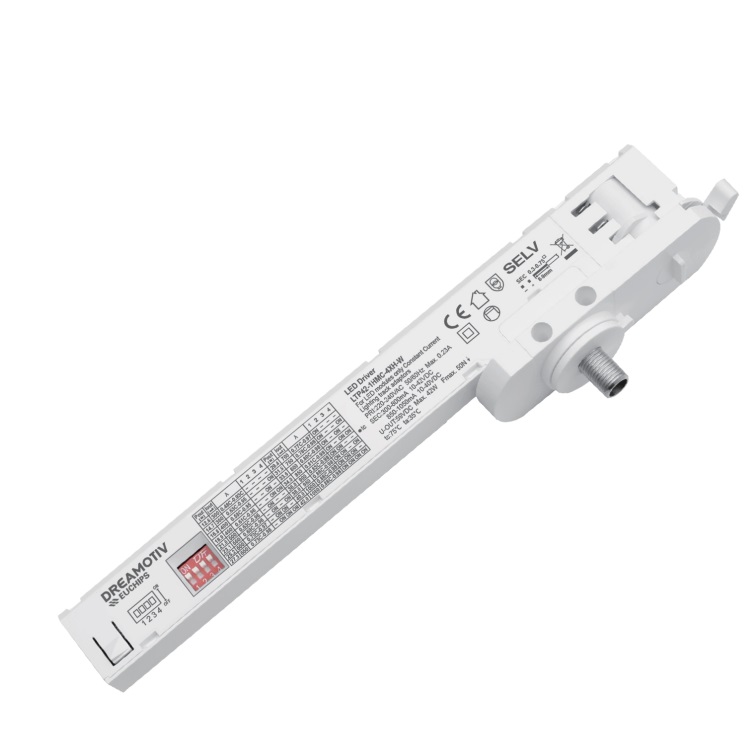

42W 300-1050mA CC LED Driver LTP42-1WMC-4X-W/B/G
Product Features
·The housing is made from V0 flame retardant PC materials from COVESTRO.
·Small size and light weight. Wide range of applicable lamps.
·Class 2 LED driver, Safety Extra Low Voltage (LVLE).
·Innovative thermal management technology intelligently protects the life of the LED driver.
·Overheat, overload, short circuit protection and automatic recovery.
·Up to 50,000-hour life time.
·5-year warranty (AiSHi capacitor).
Technical Paramaters
| Model | LTP42-1HMC-4XH-W LTP42-1HMC-4XH-B LTP42-1HMC-4XH-G | ||||
|
Input |
Efficiency | ≥88%@120VAC, ≥89%@230VAC, ≥89%@277VAC, full load) | |||
| Rated Input Voltage | 120VAC-277VAC | ||||
| Range of Input Voltage | 100-305VAC | ||||
| Range of D C Input Voltage | 180 -280VDC | ||||
| Frequency Range(Hz) | 50/60Hz | ||||
| Power | ≤48.27W (120VAC, full load) | ||||
| Power Factor | ≥0.99 (120VAC, full l oad) | ||||
| THD | ≤10% (120VAC, full load) | ||||
| Overvoltage protection | 2h@380VAC, 48h@320VAC | ||||
| Input Current | ≤0.41A (120VAC, full load) | ||||
| No-load Power Consumption | ≤0.5W @230VAC | ||||
| Inrush Current | ≤9.5A/16us (120VAC，full load) | ||||
|
Connected quantity of 10A Breaker Connected quantity of 16A Breaker Connected quantity of 20A Breaker |
21pcs/type A ;33pcs/type B ;53pcs/type C@230Vac 33pcs/type A ;53pcs/type B ;84pcs/type C@230Vac 41pcs/type A ;66pcs/type B ;105pcs/type C@230Vac |
||||
|
300mA/10-42V/3.00-12.60W |
350mA/10-42V/3.50-14.70W |
400mA/10-42V/4.00-16.80W |
450mA/10-42V/4.50-18.90W | ||
| Current(mA)/Voltage (VDC) |
500mA/10-42VV/5.00-21.00W |
550mA/10-42V/5.50-23.10W |
600mA/10-42V/6.00-25.20W |
650mA/10-42V/6.50-27.30W | |
| Power(W) |
700mA/10-42V/7.00-29.40W |
750mA/10-42V/7.50-31.50W |
800mA/10-42V/8.00-33.60W |
850mA/10-40V/8.50-34.00W | |
|
900mA/10-40V/9.00-36.00W |
950mA/10-40V/9.50-38.00W |
1000mA/10-40V/10.00-40.00W |
1050mA/10-40V/10.50-42.00W | ||
| No Load Voltage | 59VDC Max. | ||||
| Output | Current Ripple(< 120 Hz) | ±5% (Imax-Imin)/(Imax+Imin) | |||
| PstLM | ≤1 | ||||
| SVM | ≤0.4 | ||||
| Current Accuracy | ±5% | ||||
| Started Delay Time | ≤0.5S@277VAC, ≤1S@120VAC | ||||
|
Protection |
Short Circuit Protection | Auto Recovery | |||
| Overload Protection | Auto Recovery (not be hot swap) | ||||
| No-load Protection | Auto Recovery | ||||
| Insulation voltage | 3000V 5mA 60S between P-S | ||||
| Insulation resistance | >100M ohm @ 500VDC | ||||
| Leakage current | < 250µA, I/P to O/P or I/P to PE @120V input | ||||
