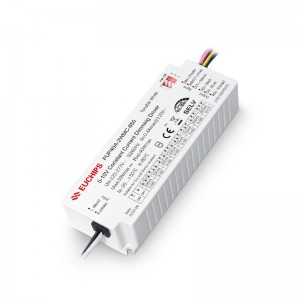

40W 850-1200mA 0-10V CC Driver PUP40A-2WMC-1200
Product Features
•Dual-channel output, output current adjustable via DIP switch
•Supports 0–10V, potentiometer, and PWM dimming
•Flicker-free smooth dimming, color temperature range: 2700K–6500K
•Protections: Overload, over-voltage, and short-circuit protection
•UL Class P & Class 2 output
•Complies with UL 8750 & UL 1310 safety standards
•Suitable for Dry , Damp Locations
•Designed for indoor LED lighting applications
Technical Paramaters
| Model | PUP40A-2WMC-1200 | |
|
Input |
Efficiency | >85%@120VAC, >86%@277VAC Full load |
| Frequency | 50-60Hz | |
| Voltage | 120VAC-277VAC | |
| Current | 0.40Amax@120VAC, 0.22A@230AC, 0.19A@277VAC | |
| Power Factor | 0.98@120VAC, 0.95@230VAC, 0.9@277VAC, Full load | |
| THD(full load) | 10%@120VAC, 15%@277VAC, Full load | |
| Inrush Current | Cold start, 8@120VAC 50us, 20A@277VAC 40us | |
| No load power | <1.0W | |
| Standby Power | <1.0W | |
| Current/Voltage/Power | 850mA/9-42V/35.7W 900mA/9-42V/37.8W 950mA/9-42V/40W 1000mA/9-40V/40W1050mA/9-38V/40W 1100mA/9-36V/40W 1150mA/9-34V/39.1W 1200mA/9-33V/40W | |
| Output | Channel | 2 |
| No load output voltage | 59V Max | |
| Current Accuracy | ±5% | |
| Current ripple | <5% | |
| Protection | Short circuit | Shut down output, Auto-recovery after Fault Clearance |
| Overvoltage | Hiccup Protection,, Auto-recovery after Fault Clearance | |
| Overload | Hiccup Protection,, Auto-recovery after Fault Clearance | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG: 500Vac/1min/<5mA, O/P-DIM( Signal port ):1500Vac/1min/<5mA | |
| Safety standards | UL8750, Class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Function |
Dimming type | 0/1-10V ,Potentiometer,PWM |
| Dimming range | 0.1%-100% | |
| Color temperature range | 2700k-6500k | |
| Dimming curve | Linearity | |
| Flicker | Flicker free | |
|
Others |
Working temp. | (-20~+50) ℃ [-4°F~122°F] |
| Relative humidity | 20~90% RH | |
| tc | 80℃ [ 176°F ] | |
| Lifetime | 50,000h@tc:80℃[ 176°F ] | |
| Warranty Condition | 5 years | |
| Switch cycle | >25,000 times | |
| IP rating | IP20 | |
| Material | PC | |
| Dimension | 121*44*26.5mm(L*W*H) | |
| Pack Information | Net weight: 230g±5%/PCS; 50PCS/Carton; 12kg±5%/Carton; Carton Size: 286*239*194mm (L*W*H) | |
