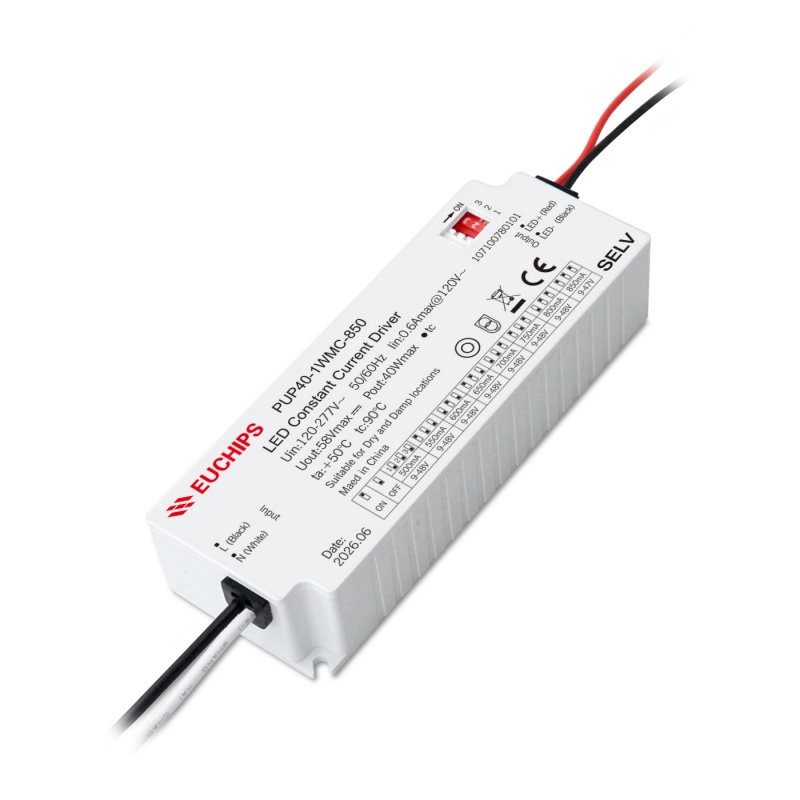

40W 500-850mA*1ch CC Driver PUP40-1WMC-850
Product Features
·Single channel output, output current level selectable by DIP S.W.
·Input voltage of 100VAC~240VAC
·Protections: Short circuit, Over load, Over voltage
·Suitable for indoor LED lighting application
|
Model |
PUP40-1WMC-850 | |
|
Input |
Voltage | 100VAC-240VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@230VAC, Full load | |
| PF | 0.95@230VAC, Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Current | 0.6Amax@100VAC | |
| Inrush Current | Cold start,30A@230VAC | |
| Standby Power | <1W | |
| Current/Voltage/Power | 500mA/9-48V/24W 600mA/9-48V/28.8W 700mA/9-48V/33.6W 800mA/9-48V/38.4W | |
| 550mA/9-48V/26.5W 650mA/9-48V/31.2W 750mA/9-48V/36W 850mA/9-47V/39.95W | ||
| Channel | 1 | |
|
Output |
No load output voltage | 60V Max |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Dimension | 121*44*26.5mm(L*W*H) |
| Pack Information | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm(L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20°C~50°C | |
| tc | 90°C | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85°C | |
| Material | PC | |
| Switch cycle | >25,000 times | |
