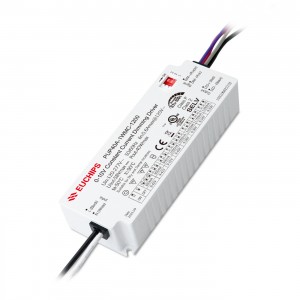

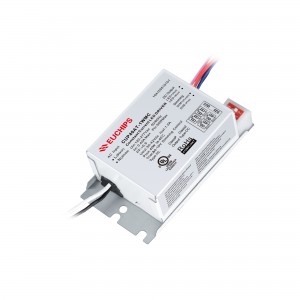

40W 850-1000mA Triac&ELV &0-10V CC Driver CUP40AT-1WMC

Short Description:

·Comply With UL8750/CSA-22.2 No.250.13 Safety Regulations

·All material to be ROHs compliant to Directive 2011/65/EU and (EU)2015/863

·Class P, Class 2

·5 Years Warranty (Life expectancy of 50,000h at tc≤75°C)

·Comply With FCC Part15 Class B (@120Vac input Voltage)

·Output Power(Current) Adjustable


Product Detail

Product Tags

Model CUP40AT-1WMC


Input

Efficiency ≥84%@120V , ≥85%@277V
Voltage 120-277VAC
Power Factor >0.95@120V >0.90@277V
THD(full load) <20%
AC Current 0.42A(120VAC) 0.18A (277VAC)
Inrush Current(max) Max 30A
Output Current(mA) 1000/950/900/850mA 30-42VAC
Function Dimming Type 0-10V and Triac (120V 60Hz only)
Dimming Range 10%-100% @120-277Vac(0-10V Dimming)
Flicker Percentage <30% ,comply with CEC Title 20

Safety& EMC

Surge IEEE C62.41 2.5kV Ring Wave
Withstand Voltage I/P-O/P.I/P-FG: (2U+1000Vac)/5mA/1min,O/P-FG: 500Vac/5mA/1min
Safety Standards UL 8750-LED equipment for use in lighting product CSA C22.2 No.250.13-LED equipment for lighting applications


Others

Lifetime 50,000h at tc≤75°C (167°F)
Material metal
Dimension 3.4×1.9×1.1 Inch 86.4*47.6*27.8mm(L*W*H)
Packing(weight) Net weight: 190g (0.42 lb) ±5%/PCS
IP Rating IP20
Working Temp. -20°C~40°C (-4°F~104°F)
Storage Temp., Humidity -40°C~55°C (-40°F~131°F)
Switch Cycle >25,000 times
Warranty Condition 5 years
