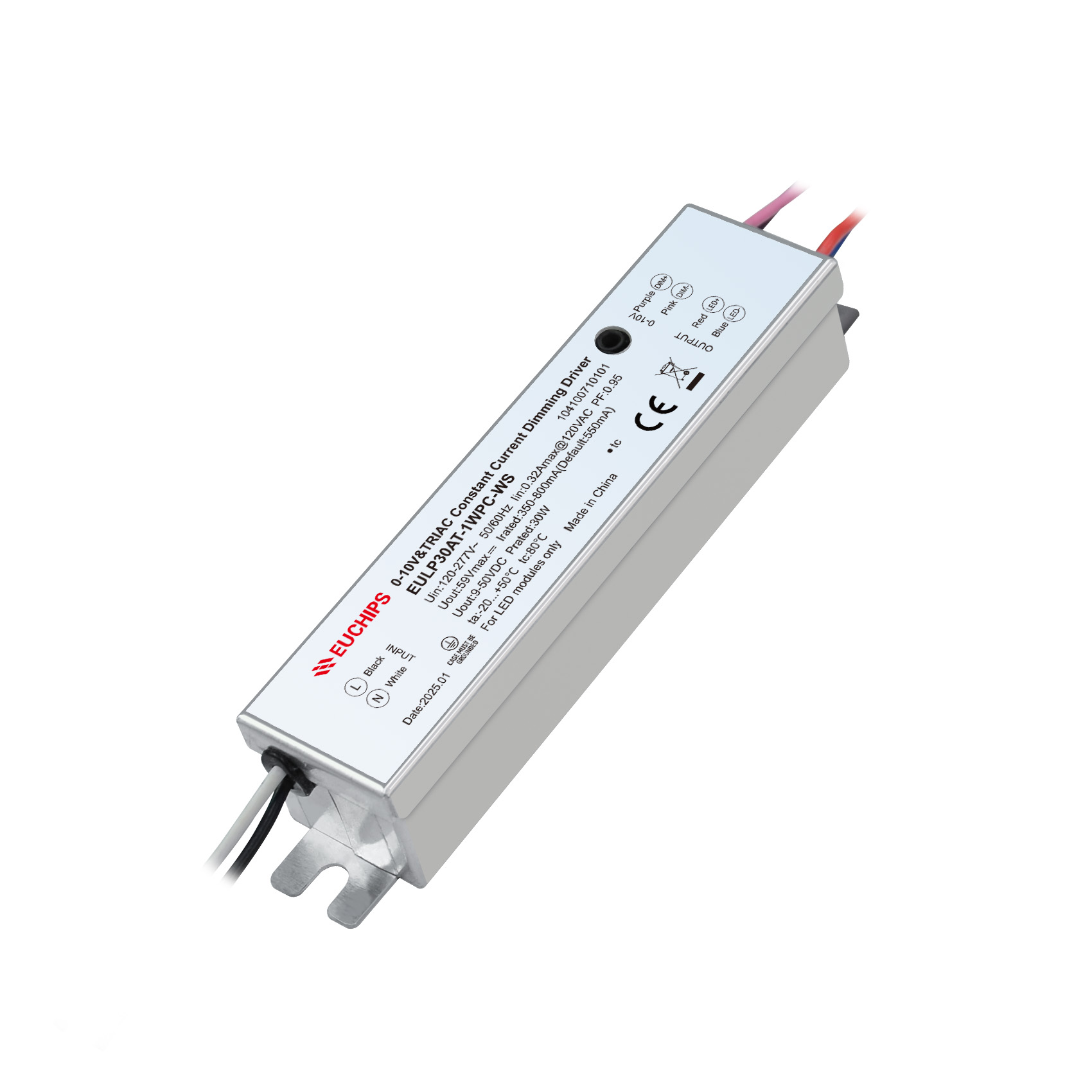

30W 350-800mA 0-10V&Triac CC Driver EULP30AT-1WPC-WS
Product Features
• Single channel output, output current can be Programmable by software
• Support 0/1-10V ,Potentiometer,PWM,Triac/ELV Dimming
• TRIAC and ELV dimming at 120 Vac only
• Protections: Overload, Overvoltage and short-circuit
• UL Class P, Class 2 Output
• Safety according to UL8750 & UL 1310
• Suitable for Dry , Damp Locations
• Suitable for indoor LED lighting application
Technical Paramaters
| Model | EULP30AT-1WPC-WS | |
|
Input |
Efficiency | ≥85%@120VAC, ≥84%@277VAC, Full load |
| Frequency | 50-60Hz | |
| Voltage | 120VAC-277VAC | |
| PF | ≥0.95@120VAC, ≥0.9@277VAC, Full load | |
| THD(full load) | ≤10%@120VAC, ≤15%@277VAC, Full load | |
| Current | 0.32Amax@120VAC, 0.15A@277VAC | |
| Inrush Current | Cold start, 10A@120VAC 100us, 21A@277VAC 100us | |
| Standby Power | ≤2W | |
| No load power | ≤2W, ≤2.2W@277VAC | |
|
Output |
Current | 350-800mA (Default current: 550mA) |
| Voltage | 9-50V *(Triac dimming above 20V has better dimming effect) | |
| Power | 30W max *(Triac dimming with a load of 7W or more has better dimming effect) | |
| Channel | 1 | |
| No load output voltage | 59V Max | |
| Current Accuracy | ±5% (*350mA ±7%) | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Overvoltage | Yes, Current drops, Auto-recovery after Fault Clearance |
| Overload | Yes, Current drops, Auto-recovery after Fault Clearance | |
| Short circuit | Shut down output, Auto-recovery after Fault Clearance | |
|
Safety & EMC |
Surge | L-N:2.5KV (ANSI/IEEE C62.41.1-2002 & c62.41.2-2002 category A, 2.5 kV ringwave) |
| Withstand Voltage | I/P-O/P: 2000Vac/1min/<5mA, I/P-PG:1500Vac/1min/<5mA, O/P-PG: 500Vac/1min/<5mA, O/P-DIM( Signal port ):500Vac/1min/<5mA | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Emission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Function |
Dimming type | 0/1-10V ,Potentiometer,PWM,Triac/ELV(@120VAC 60Hz) |
| Dimming range | 1%-100% | |
| Dimming curve | 0-10V: Linearity/Logarithm curve programmable, Triac/ELV: Linearity | |
| Flicker | Flicker free | |
|
Others |
Working temp. | (-20~+50) ℃ [-4°F~122°F] |
| Relative humidity | 20~90% RH | |
| tc | 80℃ [ 176°F ] | |
| Lifetime | 50,000h@tc:80℃[ 176°F ] | |
| Warranty Condition | 5 years | |
| Switch cycle | >25,000 times | |
| IP rating | IP20 | |
| Material | Metal | |
| Dimension | 123.5*28*25mm (4.86*1.1*0.98 Inch)(L*W*H) | |
| Pack Information | N.W: 150g(0.33 lb)±5%/PCS; 75 PCS/Carton; 11.75kg(25.9 Ib)±5%/Carton; Carton Size: 405x197x174mm(15.94*7.76*6.85 Inch)(L*W*H) | |
