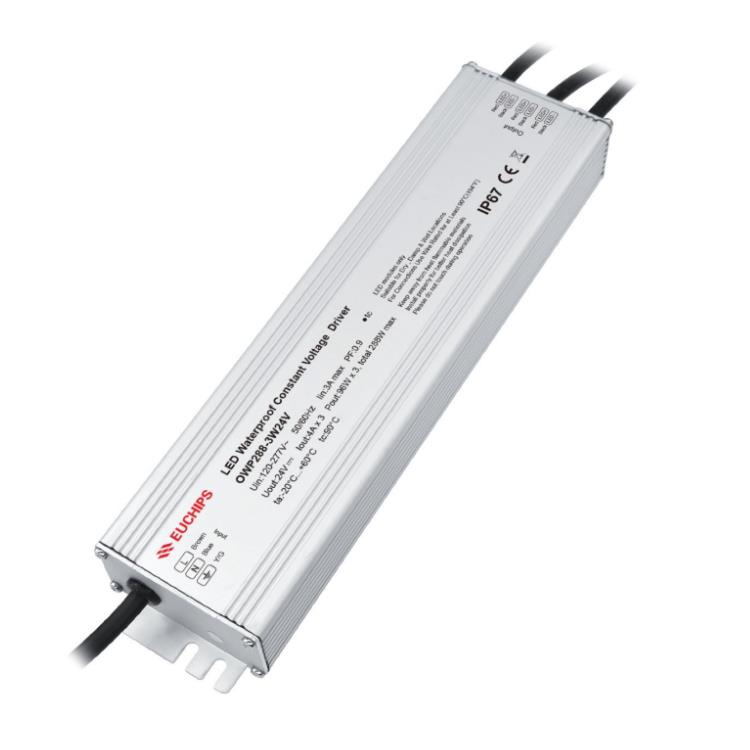

288W 24V 0-10V CV LED Driver OWP288-3W24V
Product Features
·Three-channel constant voltage output, per channel 4A Max
·Input Voltage Range 108-305Vac
·Protection: short circuit, Overload, Overcurrent
•50,000Hour Life @ tc=85℃
•5 Year Warranty @ tc<=85℃
•UL Class 2
•Flicker free
•Safety according to UL8750 &UL 1310
·Suitable for Dry , Damp & Wet Locations
Technical Paramaters
| Model | OWP288-3W24V | |
|
Input |
Efficiency | ≥90%@120VAC, ≥93%@277VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 3Amax @120VAC, 1.5Amax@230VAC, 1.4Amax@277VAC | |
| PF | ≥0.95@120VAC, ≥0.9@277VAC, full load | |
| THD | <10%@230VAC, 277VAC, full load | |
| Inrush Current(max) | Cold start,50A@120VAC 280us, 74A@277VAC 420us | |
| No load power | <0.5W@120VAC | |
| Turn on Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Current | 3 Channel, 4A per channel |
| Voltage | 24VDC | |
| Voltage Range | 24VDC ±5% | |
| Power | 96W per channel, total 288W | |
| Channel | 3 | |
| Ripple Voitage | ≤240mV(p-p) | |
| Protection | Short Circuit | No output, Auto-recovery after Fault Clearance |
| Overload | No output, Auto-recovery after Fault Clearance | |
| Overcurrent | No output, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N :6kV L-N-PG:6kV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-PG:1800Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA | |
| Safety standards | UL8750,EN61347-1,EN61347-2-13 | |
| EMC Eission | EN55015,FCC PART15 ClassB | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+60℃ (-4°F-140°F) |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH (-40°F-185°F) | |
| tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000小时@tc:85℃ (185°F) | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 1200g (– lb)±5%/PCS; –PCS/Carton;—kg(21.2 lb)±5%/Carton; Carton Size: –*–*–mm(–*–*– Inch)(L*W*H) | |
| Dimension | 11.06*2.66*1.38 In (281*67.5*35mm)(L*W*H) | |
