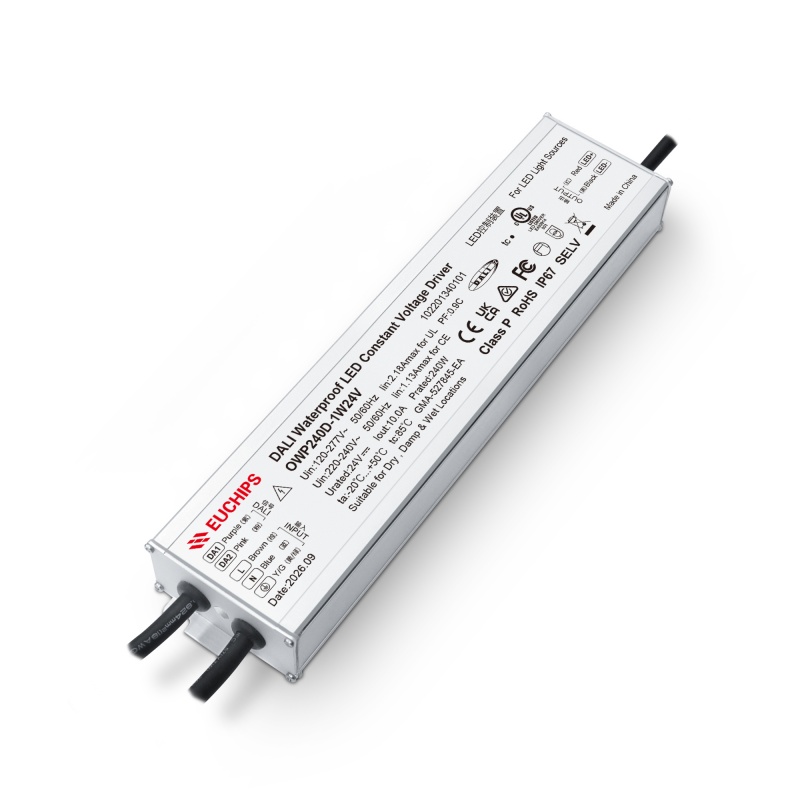

240W 24VDC DALI Waterproof CV Driver OWP240D-1W24V

Short Description:

Features

Single channel constant voltage output, maximum output current 10.0A

Lightning protection, short circuit, overcurrent, overload, metal shell

Protection class IP67, suitable for outdoor lighting

Smooth dimming without step sense and stroboscopic

Life of 50,000 hours, 5 years warranty

Customizable dimming curve

Wide voltage input with active PFC, full power output

Suitable for Dry , Damp & Wet Locations

Suitable for LED constant voltage lamps, lamp strips, etc

Keep away from heat flammable materials

Install properly for better heat dissipation

Please do not touch during operation

S’il vous plaît ne pas toucher pendant le fonctionnement

lnstaller correctement pour une meilleure dissipation de la chaleur

Tenir à l’écart des matériaux inflammables sous forme de chaleur

Send email to us Download as PDF

Product Detail

Product Tags

Features

Single channel constant voltage output, maximum output current 10.0A
Lightning protection, short circuit, overcurrent, overload, metal shell
Protection class IP67, suitable for outdoor lighting
Smooth dimming without step sense and stroboscopic
Life of 50,000 hours, 5 years warranty
Customizable dimming curve
Wide voltage input with active PFC, full power output
Suitable for Dry , Damp & Wet Locations
Suitable for LED constant voltage lamps, lamp strips, etc
Keep away from heat flammable materials
Install properly for better heat dissipation
Please do not touch during operation
S’il vous plaît ne pas toucher pendant le fonctionnement
lnstaller correctement pour une meilleure dissipation de la chaleur
Tenir à l’écart des matériaux inflammables sous forme de chaleur

Technical Parameters

Model	OWP240D-1W24V
Input	Input Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	2.18Amax@120VAC, 1.13Amax@230VAC, 0.99Amax@277VAC
	Power Factor	≥0.95@120VAC, Full load ≥0.90@277VAC, Full load
	Efficiency	≥90%@120VAC, Full load ≥93%@277VAC, Full load
	THD	≤10%@230VAC, Full load ≤10%@277VAC, Full load
	Standby power	<1.5W
	No-load power	<1.5W
	Inrush Current	Cold start, 50.2A@120VAC 400us, 96.6A@277VAC 430us
Output	Output Voltage	24VDC
	Voltage Accuracy	±5%
	Output Current	10.00A Max.
	Output Power	240W Max.
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	20KHz
	Line Regulation	±3% @Full load
	Load Regulation	±3% @Full load
	Turn on delay Time	0.75s, at 120Vac (When the light begins to shine)
Function	Dimming Type	DALI2.0 PUSH DIM
	Dimming Range	0.1%-100% Dimming to OFF
	Dimming Curve	Logarithm
	Flicker	Flicker free
Protection	Short circuit	Close the output and recover after troubleshooting
	Over Current	Reduce current burp protection, self-recovery after troubleshooting
	Over load	Reduce current burp protection, self-recovery after troubleshooting
	Over Voltage	/
	Over temperature	/
Safety& EMC	Surge	L-N:6KV L-N-PE 10KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA I/P-PE:1500VAC/5mA O/P-PE:500VAC/5mA I/P-DALI( Signal port ):1500Vac/1min/<5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 EMEC (Europe) EN61347-1，EN61347-2-13，EN62384
		UL UL8750:2015 Ed.2+R:07Dec2022, UL1310, CSA-C22.2 No. 250.13:2022 Ed.5
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		FCC Part 15 Class B(120V)/Class A(277V)
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
