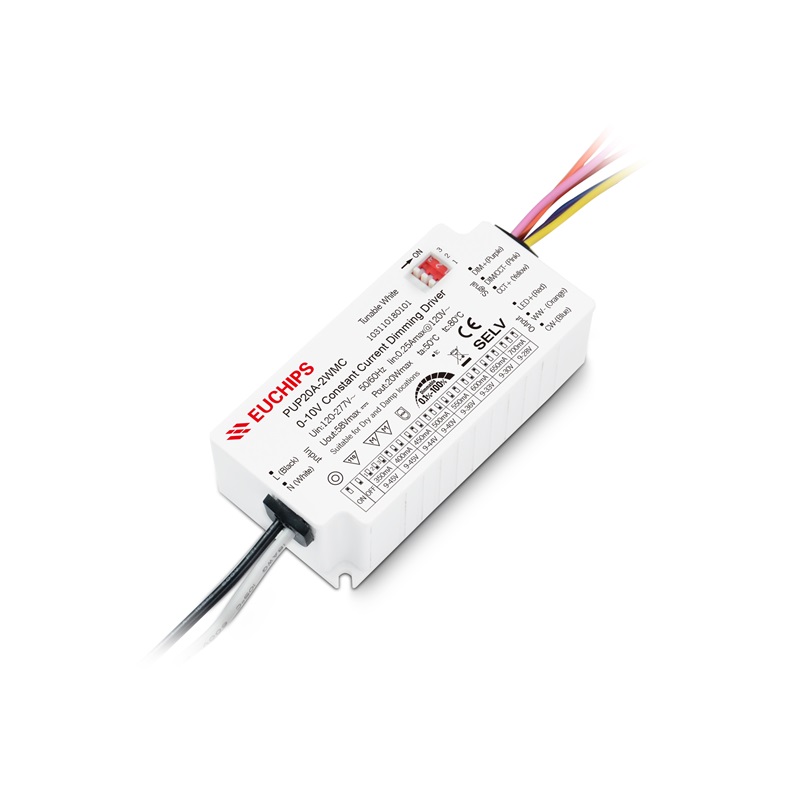

20W 350-700mA 0-10V Constant Current Dimming Driver PUP20A-2WMC
Summary
PUP20A-2WMC is a move light toning constant-current dimmer drives,
can provide 350/400/450/500/550/600/650/700mA 8-speed current LED driver, output current can be easily set by DIP switch Smooth dimming curve, no flicker.
Product Features
Dual channel constant current output, multi-level current optional
Input voltage: 120-277V
Dimming range: 0.1-100%, smooth dimming effect, no stroboscopic
Short circuit protection, overload protection, overvoltage protection
Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc
Technical Paramaters
| Model | PUP20A-2WMC | ||||
|
Input |
Voltage | 120VAC-277VAC | |||
| Frequency | 47/63Hz | ||||
| Efficiency | 84%@120VAC, Full load | ||||
| PF | ≥0.97@120VAC , Full load , ≥0.9@277VAC , Full load | ||||
| THD(full load) | <13%@120VAC, Full load , <13%@277VAC, Full load | ||||
| Current | 0.25Amax@120VAC , 0.15Amax@277VAC | ||||
| Inrush Current | Cold start,4.25A@120VAC 30us | 10.3A@277VAC, 24us | |||
| Standby Power | <1W | ||||
| No load power | <1W | ||||
| Turn on delay Time | ≤ 0.75 s, at230Vac (When the light begins to shine) | ||||
|
Output |
Current/Voltage/Power | 350mA/9-45V/15.75W400mA/9-45V/18W | 450mA/9-44V/19.8W500mA/9-40V/20W | 550mA/9-36V/19.8W600mA/9-33V/19.8W | 650mA/9-30V/19.5W700mA/9-28V/19.6W |
| Channel | 2 | ||||
| No load output voltage | 58V Max | ||||
| Ripple current | <5% | ||||
| Current Accuracy | ±5% | ||||
| Output Voltage | ±5% | ||||
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed | |||
| Over load | Hiccup, recovers after fault condition is removed | ||||
| Short circuit | Close output, recovers automatically after fault removed | ||||
|
Safety & EMC |
Surge | L-N: 2KV | |||
| Withstand Voltage | I/P-O/P: 2000VAC/1min/5mA ; I/P-0-10V: 1500VAC/1min/5mA ; O/P-DIM( Signal port 0-10V): 1500VAC/1min/5mA | ||||
| Insulation Resisance | 5MΩ | ||||
| Safety standards | EN61347, GB19510 | ||||
| EMI Eission | EN55015, EN61000-3-2 | ||||
| EMC Immunity | FCC class B(120V)/class A(277V) | ||||
| Function | Dimming type | 0-10V / PWM | |||
| Dimming range | 0.1%-100% | ||||
|
Others |
Dimension | 88*43*26.5mm (3.46*1.69*1.04 Inch) (L*W*H) | |||
| Pack Information | N.W: 146g(0.32 lb)±5%/PCS; 50PCS/Carton; 7.8kg(17.2Ib)±5%/Carton; Carton Size: 234*222*194mm(9.21*8.74*7.63 Inch)(L*W*H) | ||||
| IP rating | IP20 | ||||
| Working temp. | -20℃~50℃ [-4°F~122°F] | ||||
| tc | 80℃ [ 176°F ] | ||||
| Relative humidity | -40℃~85℃ [-40°F~185°F] , 20-90%RH | ||||
| Warranty | 5 year | ||||
| Lifetime | 50,000h@tc:85℃ [ 185°F ] | ||||
| Material | PC | ||||
| Switch cycle | >25,000 times | ||||
