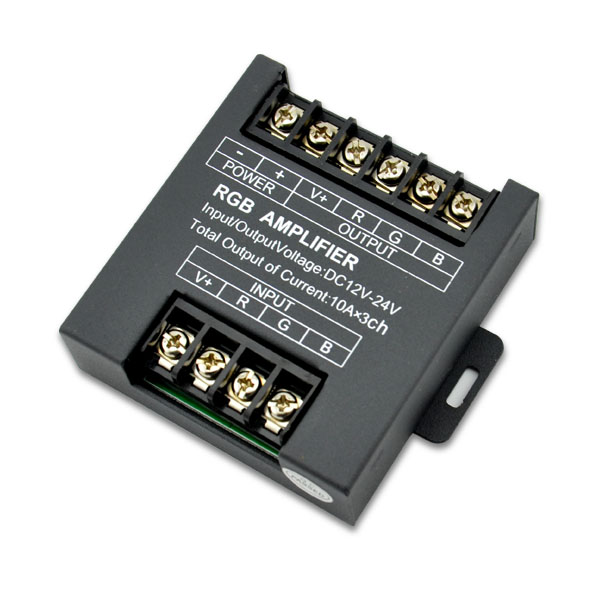

12-24VDC 10A*3ch Power Amplifier RP530
12-24vdc 10A 3 channel led power amplifier RP530
Feature
1. For the power of synchronous change signal amplification
2. High power of each output
3. High-speed process data, no delay, no flicker
4. Acceptable PWM control
5. DC12-24V wide voltage input
6. 3 Channel RGB control, 10A per channel
7. Applicable any LED module
Technical Parameter
| Product Name | 12-24vdc 10A 3 channel led power amplifier RP530 |
| Item | RP530 |
| Input voltage | DC12V~24V |
| Signal Output | RGB |
| Max. Load Current | 10A/CH * 3 channel |
| Output Power | 360W max(12V) 720W max(24V) |
| Controller Size | L82.4*W91*H25 mm |
| Packaging Size | L84*W93*H27 mm |
| G.W. | 224g |
