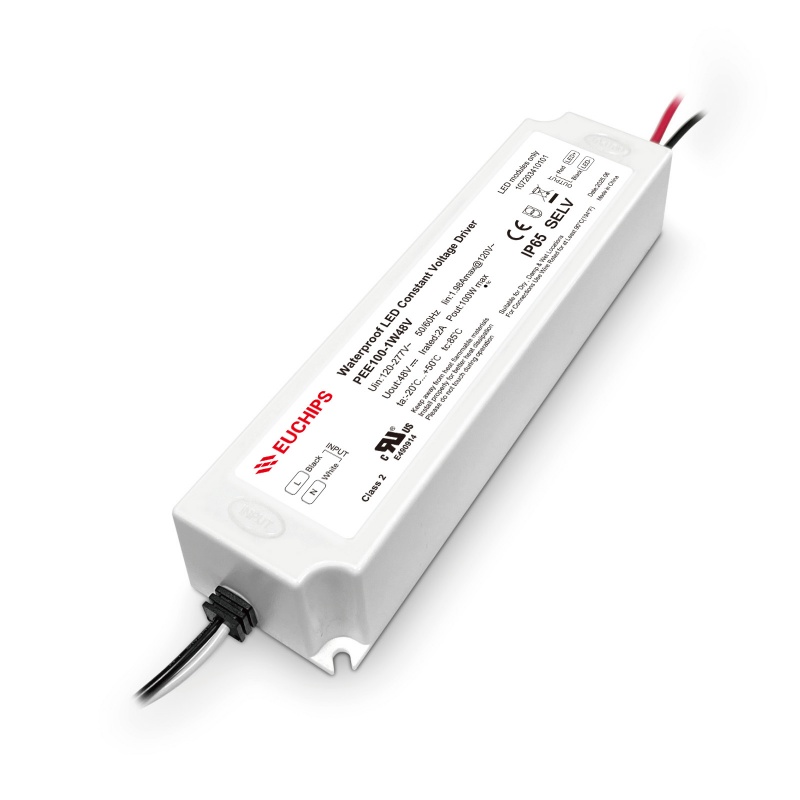

100W 48VDC Non-dimmable Waterproof CV Driver PEE100-1W48V
Features
·Width voltage input,full power output
·Insolated PC design
·Isolated design,safe and reliable
·Protections:Over load,Short circuit,over voltage
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PEE100-1W48V | |
|
Input |
Efficiency | ≥89%@230VAC, ≥87%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency | 50/60Hz | |
| Current | 2Amax@120VAC | |
| No load power | ≤ 0.5W | |
| Inrush Current | Cold start,90A@277VAC 350us | |
|
Output |
Current/Voltage/Power | 2.08A/48VDC/100W |
| Ripple Voltage | <5% | |
| No load output voltage | 50.4V max | |
| Current Accuracy | ±5% | |
| Turn On Delay Time | ≤ 0.5 s (When the light begins to shine) | |
| Channel | 1 | |
| Protection | Over load | Reduce voltage burp protection, troubleshoot normal output |
| Short Circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | Reduce voltage burp protection, troubleshoot normal output | |
| Safety & EMC | Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3750VAC/1min/5mA | |
| Safety Standards | IEC/EN61347-1, IEC/EN61347-2-13, UL1310 | |
| EMC Emission | EN55015, FCC part 15 Class B | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working Temp. | -20℃~50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 535g±5%/PCS; 20PCS/Carton; 11.4kg±5%/Carton; Carton Size: 278*241*235mm(L*W*H) | |
| Dimension | 190*52*38mm(L*W*H) | |
